Product Highlights:
[Memory & Storage] Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory. Storage: 1 x SATA3.0 for 2.5 inch HDD/SSD,1 x mSATA slot.
[Faster Running Speed] Equipped with Intel Core processor, pre-installed Windows 10 Pro(64-bit) Mini PC. Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, streaming video, web browsing, gaming and work.
[Excellent Waterproof and Dustproof Effect] Brushed full aluminum alloy silver color shell can effectively waterproof and moisture-proof, increasing the service life of the machine. Fanless operation avoids the requirement of air convection, thereby effectively preventing dust from entering the inside of the mini pc.
[Save Desktop Space] Due to its compact size, the mini host can be placed upright or lying down, freely placed in any small corner of the table, or fixed behind the monitor or TV screen with a special rack. The mini host frees up broader space resources for office and home life.
[No noise & Portability] The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can help you save a lot of space.

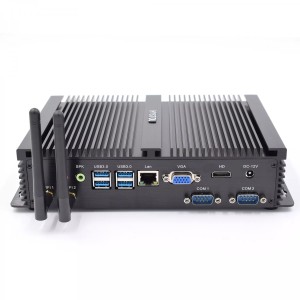

[Rich and diverse ports] 4 x USB 3.0 port, 3 x USB 2.0 port,VGA + HDMI Daul Display,1x RTL 8168/8111/8112 Gigabit NIC,2 x RS232 Com port.
This mini pc motherboard can install 4 types of processors:
1. CPU Intel Core i3 7020U 2 core 4 threads 2.3Ghz 3MB cache TDP 15W Intel HD Graphics 620;
2. CPU Intel Core i3 8145U 2 cores 4 threads 2.1GHz up to 3.9Hz 4MB cache TDP 15W Intel UHD Graphics 620;
3. CPU Intel Core i5 8250U 4 cores 8 threads 1.6GHz up to 3.4GHz 6MB cache TDP 15W Intel UHD Graphics 620;
4. CPU Intel Core i7 8550U 4 cores 8 threads 1.8GHz up to 4.0GHz 8MB cache TDP 15W Intel UHD Graphics 620;
Processor |
|
CPU |
Intel Core i3-7020U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.30 GHz) Intel Core i5-8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40 GHz) Intel Core i7-8550U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.00 GHz) |
TDP |
15W |
CPU Lithography |
14 nm |
Memory Specifications |
|
Max Memory Size |
64GB |
Memory Types |
2*DDR4 SO-DIMM 260 pin |
Memory Channels |
Dual Channels |
ECC Memory |
Don’t support |
Storage Specification |
|
m.2 SSD |
1*M.2 2280 M KEY PCIE3.0 |
SATA |
1*SATA3.0 Slot for 2.5 inch HDD/SSD |
mSATA |
1*mSATA slot |
Graphics |
|
Processor Graphics |
Intel UHD Graphics 620 |
HDMI |
1*HDMI 4096x2304@24Hz(4K) |
VGA |
1*VGA 1920*1080@60Hz(1080P) |
Power Specification |
|
Adapter Output |
DC 12V/5A |
Adapter Input |
AC 110-240V, 50/60HZ |
Consumption |
55W |
Auto Power On |
Support Auto Power On Function |
In & Out interfaces |
|
USB Port |
4*USB 3.0 port,3*USB 2.0 port |
Audio |
1*3.5mm MIC in & SPK out |
Video |
HDMI 4096x2304@24Hz + VGA 1920*1080@60Hz 2 Display Output |
Audio Cards |
Realtek ALC 892 |
Lan Port |
1*RJ45 Lan Gigabit Ethernet Controller, Realtek RTL8168/8111 |
Com Port |
2*RS232 Com port |
Wi-Fi |
Inside Wifi & Bluetooth Combo |
Others |
|
System |
Support Windows 10, Linux |
BIOS |
Support AUTO POWER ON,Wake On LAN,RAID,PXE,RAID |
MPCIE |
1*MPCIE,Support Wifi module |
Work Environment |
-10℃--60℃(14F~140F) , 30%--90% Humidity |
Case Material |
Full Brushed Aluminum Alloy |
Dimension |
PC size 210*150*69mm Package size 320*260*80mm |
Weight |
Net 1.4kg; Gross 2.1 kg |
