Small Form Factor Fanless PC H2

Small Form Factor Fanless PC H2 Item NO.: H2-D3

Write a Review
US$ 133.97
CPU
Celeron 2955U i3 4010U/4030U i5 4200U/4300U i7 4500U/4650U i3 5005U/5020U i5 5200U i7 5550U/5650U i3 6006U/6100U i5 6200U i3 7167U i5 7267U
Memory
No RAM 2G DDR3/L 4G DDR3/L 8G DDR3/L
Storage
No Storage 64G SSD 128G SSD 256G SSD 512G SSD 500G HDD 1TB HDD 256G SSD+1TB HDD
Quantity

Copy and share this link on social network or send it to your friends

Copy

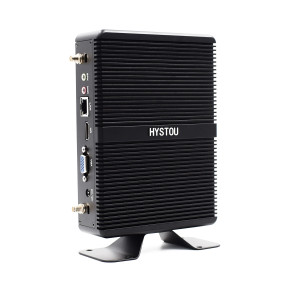

Product Name Small Form Factor Fanless PC H2
Item NO. H2-D3
Weight 1.6 kg = 3.5274 lb = 56.4383 oz
Category Fanless Mini PC
Brand HYSTOU
Creation Time 2020-07-10

Hystou Fanless Mini PC H2 models are designed for unique, office, home and training applications. The minicomputer's compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.


Product Highlight:

[Save Desktop Space] Due to its compact size, the mini host can be placed upright or lying down, freely placed in any small corner of the table, or fixed behind the monitor or TV screen with a special rack. The mini host frees up broader space resources for office and home life.

[No noise & Portability] The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can help you save a lot of space.

[More stable operation] The cooling fan of the fanless mini computer does not use a cooling fan. Instead, a heat sink is distributed on the surface of the chassis. This design solves the problem that the cooling fan works for a long time and causes the internal temperature of the chassis to malfunction, and improves the long-term stability of the mini computer.

[Great Home Theater PC] The mini desktop computer comes with 4K ultra high definition streaming capability, giving you a best-in-class television experience with true-to-life picture quality, which can be used as a media center to enjoy TV shows or games

[Rich and diverse ports] 4 x USB 3.0 port, 2 x USB 2.0 port, 1 x RJ45 Lan, RTL8168/8111/8112 Gigabit Ethernet Controller.



Available processors for DDR3 RAM:

1. Intel® Celeron 2955U Processor (2M Cache, up to 1.4 GHz);

2. Intel® Core™ i3-4010U Processor (3M Cache, up to 1.7 GHz);
3. Intel® Core™ i5-4200U Processor (3M Cache, up to 2.6 GHz);
4. Intel® Core™ i3-5005U Processor (3M Cache, up to 2.0 GHz);

5. Intel® Core™ i5-5200U Processor (3M Cache, up to 2.7 GHz);

6. Intel® Core™ i5-6200U Processor (3M Cache, up to 2.8 GHz);

7.Intel® Core™ i3-7167U Processor (3M Cache, up to 2.8 GHz);

8. Intel® Core™ i5-7267U Processor (4M Cache, up to 3.5 GHz);


Processor

CPU

Intel Celeron 2955U (2M Cache, 2 Cores 4 Threads, Base Frequency 1.40 GHz)

Intel Core i3-4010 (3M Cache, 2 Cores 4 Threads, Base Frequency 1.70 GHz )

Intel Core i5-4200U (3M Cache, 2 Cores 4 Threads, Base Frequency 21.60 GHz Turbo Frequency 2.60 GHz)

Intel Core i3-5005U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.0 GHz )

Intel Core i5-5200U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.20 GHz Turbo Frequency 2.70 GHz)

Intel Core i5-6200U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.30 GHz Turbo Frequency 2.80 GHz)

Intel Core i3-7167U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.80 GHz)

Intel Core i5-7267U (4M Cache, 2 Cores 4 Threads, Base Frequency 3.10 GHz Turbo Frequency 3.50 GHz)

TDP

15W

CPU Lithography

14 nm for 5th cpu, 22 nm for 4th cpu

Memory Specifications

Max Memory Size

8GB

Memory Types

204 Pin DDR3L SO-DIMM Socket

Memory Channels

Single Channel

ECC Memory

Don’t support

Storage Specification

m.2 SSD

No M.2 slot

SATA

1 x SATA3.0 for 2.5 inch HDD/SSD

mSATA

1 x mSATA slot

Graphics

Processor Graphics

Intel® HD Graphics 4400 for 4th cpu, Intel® HD Graphics 5500 for 5th cpu, Intel® Iris® Plus Graphics 650 for 7th cpu

HDMI

1 x HDMI

VGA

1 x VGA

Power Specification

Power Adapter

12V Power Input, supply 12V 5A power adapter within the package

Auto Power On

Support Auto Power On Function

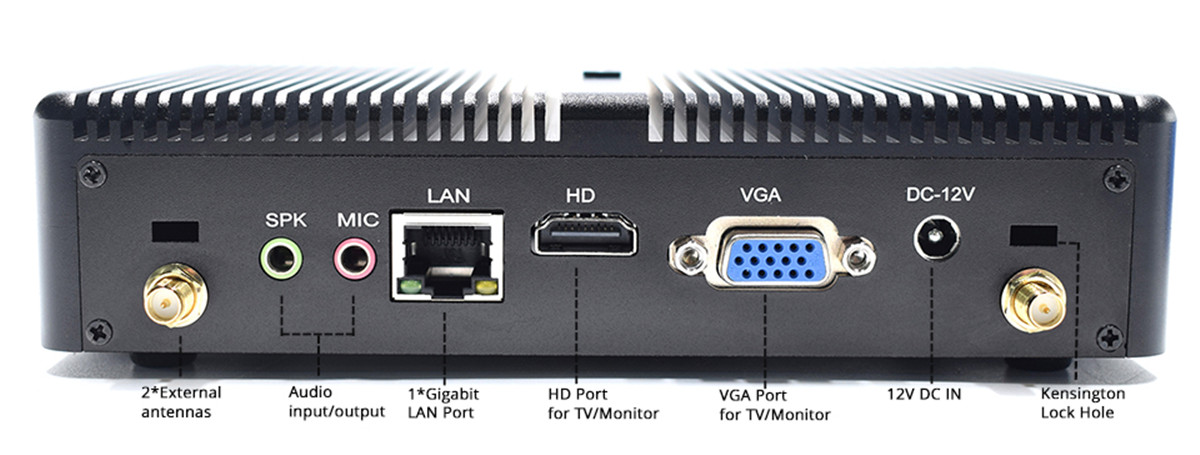

In & Out interfaces

USB Port

4 x USB 3.0 port, 2 x USB 2.0 port

Audio

3.5mm 1 Jack, MIC in/ Line out

Video

  1 x HDMI+1 x VGA Dual Display

Power Input

12V In

Lan Port

1 x RJ45 Lan, RTL8168/8111/8112 Gigabit Ethernet Controller

Com Port

NO

Others

System

Support Windows 7/10, Linux

Case Material

Aluminium Alloy

Dimension

Mini PC size 172x125x38mm

Package size 305x205x75mm

Weight

Gross weight 1.2 kg
