Small Form Factor Fanless Mini PC H5

Small Form Factor Fanless Mini PC H5 Item NO.: H5

5.0
(1)
Write a Review
US$ 532.46
CPU
Core i5-8250U Core i7-8550u
Memory
No RAM 4G DDR4 8G DDR4 16G DDR4 32G DDR4 64G DDR4
Storage
No Storage 128G SSD 256G SSD 512G SSD 256G SSD+1TB HDD
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Small Form Factor Fanless Mini PC H5
Item NO. H5
Weight 2.5 kg = 5.5116 lb = 88.1849 oz
Category Fanless Mini PC
Brand HYSTOU
Creation Time 2020-07-10

H5, designed for unique, office, home and training applications. The H5 Fanless PC's compact small size, durability, high reliability, universal performance and low power requirement help users getting much better.

H5 Mini PC high light:

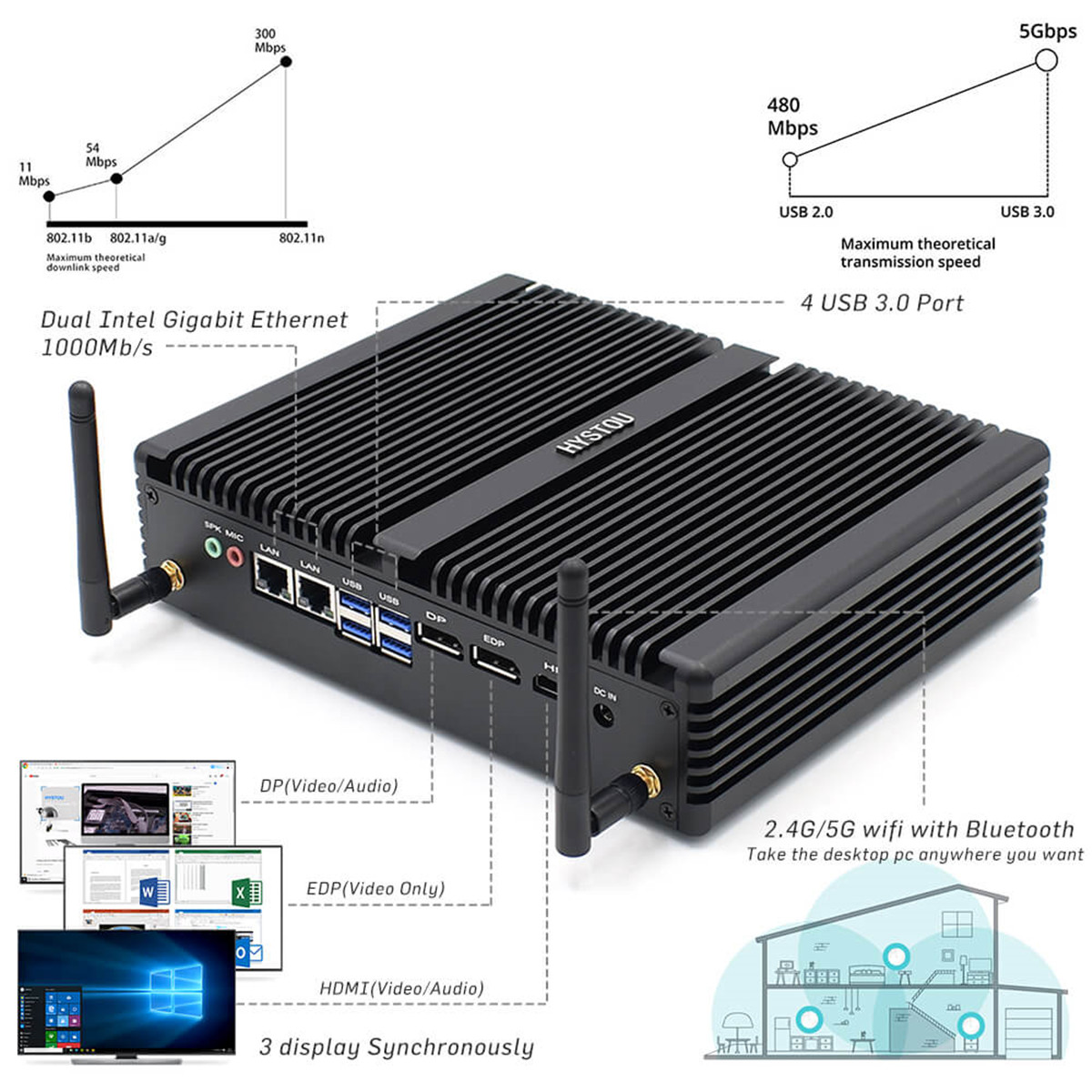

[Support 3 Synchronized DisplaysBuilt with 1xHDMI, 1XEDP, 1 x DPport, support 3 synchronized displays. With integrated Intel HD graphic to enjoy 4K Web surfing, video playback, watching TV, home theater, enjoy the entertainment with your family.

[Faster Running Speed] Equipped with  Intel 8th Gen Core i5-8250U and i7-8550U Quad Core Processor, 8M Cache max Turbo 3.4 up to 4.0 GHz., pre-installed Windows 10 Pro 64-bit Mini PC. Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, Streaming video, Web Browsing, Gaming, and Work.
[Great Home Theater PC] The mini desktop computer comes with 4K ultra high definition streaming capability, giving you a best-in-class television experience with true-to-life picture quality, which can be used as a media center to enjoy TV shows or games.

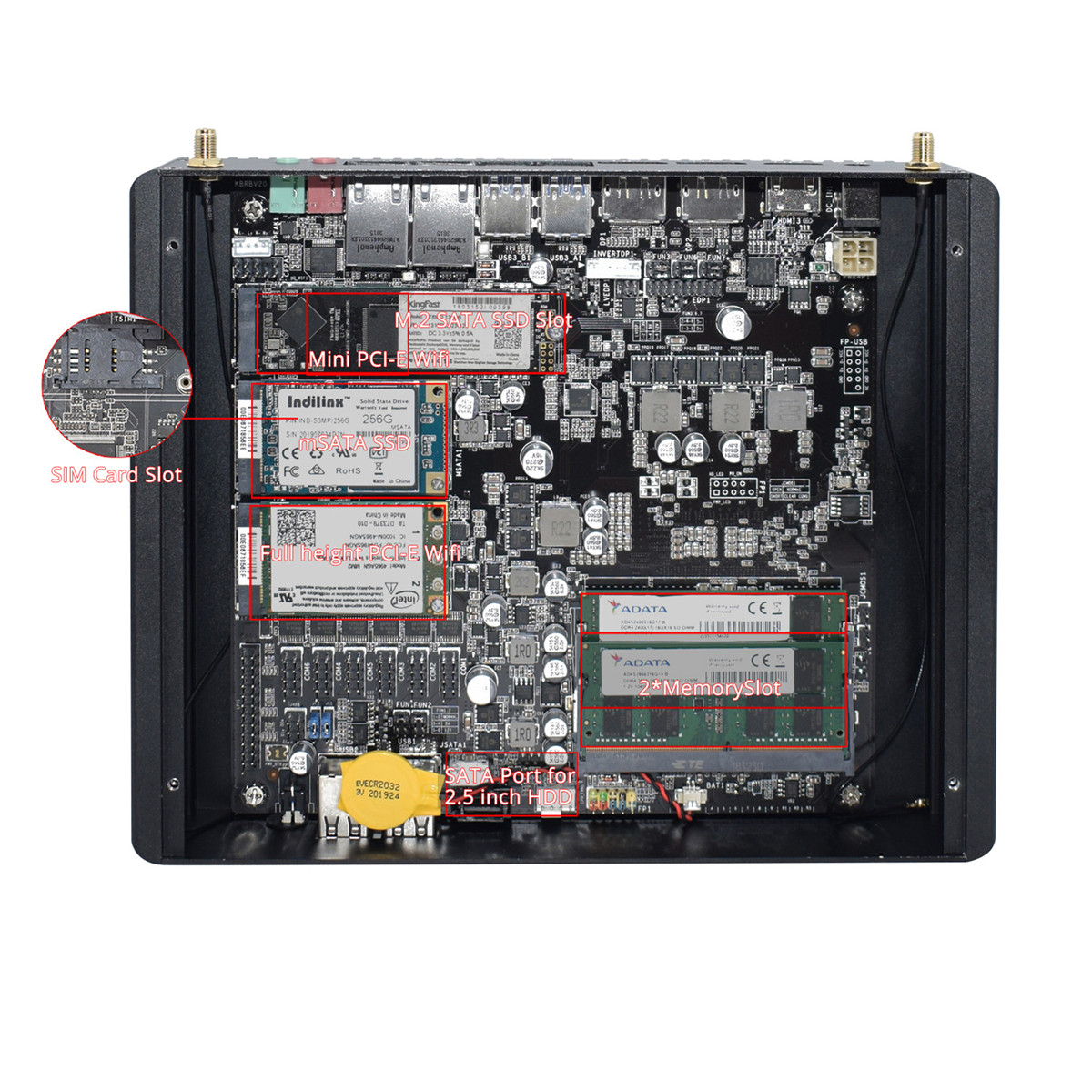

[Memory & Storage] Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory. Storage: 1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME),1 x  SATA3.0 for 2.5 inch HDD/SSD,1 x mSATA slot.
[Windows 10 Pro] Pre-installed with Windows 10 Pro(64bit) OS.Support Auto-on after power failure(1.Press On/Off Switch on the pc and then keep press “Delete”until goes into bios 2.Find “State After G3” under “PCH_IO configuration” page, change “s5 state” to “s0 state”, press “Enter” key. 3.Press “F10” key to save the setting and finish the setting. From now on any illegal shutdown will bring auto power on after the pc connect to main supply.)

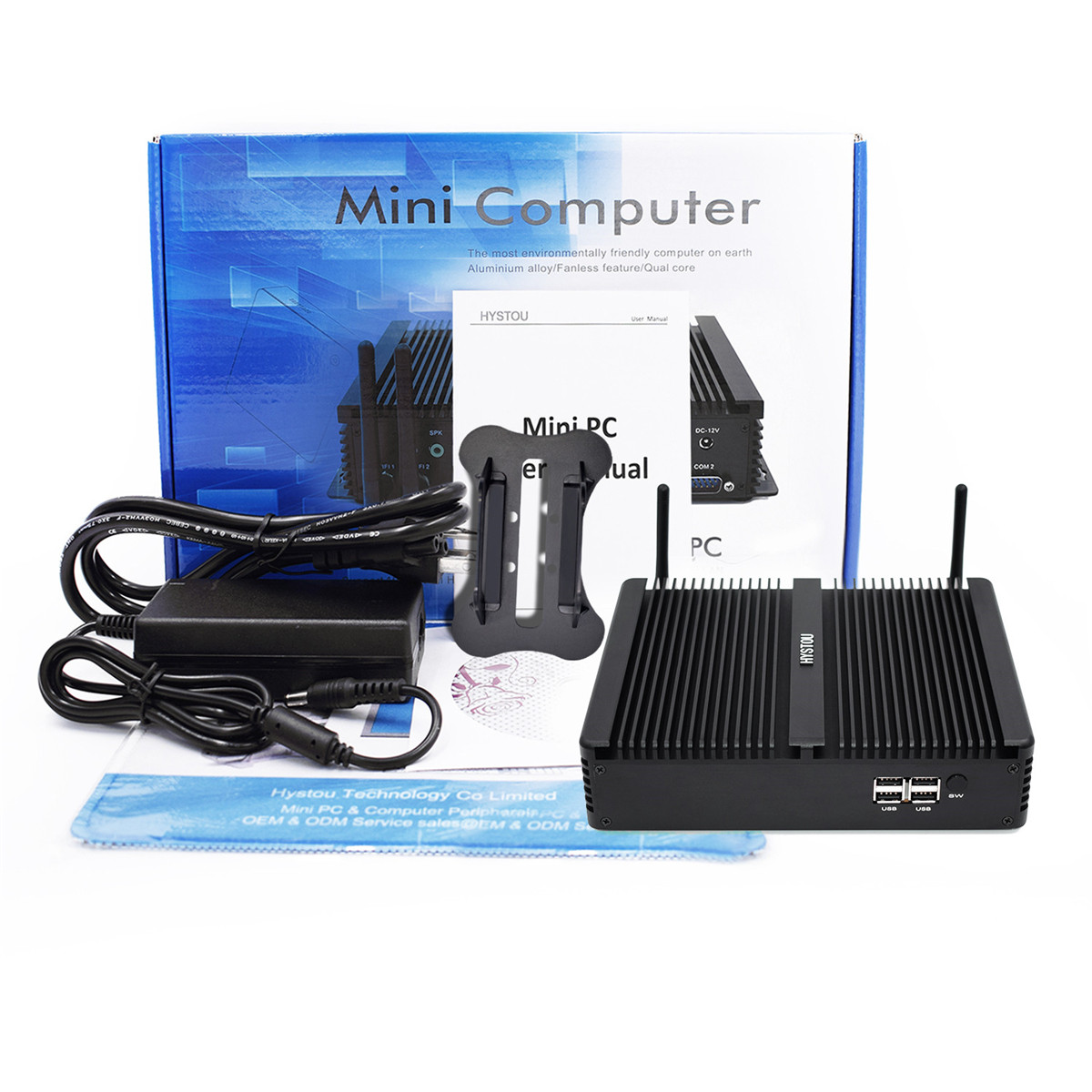

[No noise & portability] The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can save a lot of space.


Available Processors:
1. Intel® Core™ i5-8250U Processor (6M Cache, up to 3.4 GHz);
2. Intel® Core™ i7-8550U Processor (8M Cache, up to 4.0 GHz);



Processor

CPU

Intel Core i5-8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40 GHz)

Intel Core i7-8550U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.00 GHz)

TDP

15W

CPU Lithography

14 nm

Memory Specifications

Max Memory Size

64GB

Memory Types

260 pin DDR4 SO-DIMM

Memory Channels

Dual Channels

ECC Memory

Don’t support

Storage Specification

m.2 SSD

1*M.2 2280 M KEY PCIE3.0

SATA

1*SATA3.0 Slot for 2.5 inch HDD/SSD

mSATA

1* mSATA slot

Graphics

Processor Graphics

    Intel UHD Graphics 620

HDMI

1*HDMI 4096*2160@60Hz(4K)

EDP

1*EDP 4096*2160@60Hz(4K)

DP

1*DP 4096*2160@60Hz(4K)

Power Specification

Adapter Output

DC 12V/6A

Adapter Input

DC 110-240V AC, 50/60HZ

Consumption

52W

Auto Power On

Support Auto Power On Function

In & Out interfaces

USB Port

4*USB 3.0 port,4*USB 2.0 port

Audio

1*3.5mm MIC in & SPK out

Video

HDMI 4096*2160@60Hz + EDP 4096*2160@60Hz + DP 4096*2160@60Hz 3 Display Output

M.2

1*M.2 E KEY 2230

Audio Cards

Realtek ALC 662/897

Lan Port

2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211

Wi-Fi

Inside Wifi & Bluetooth Combo

Others

System

Support Windows 10/11, Linux

BIOS

Support TPM2.0,RAID,AUTO POWER ON,Wake On LAN,Watchdog,PXE/IPXE

SIM

1*SIM slot

MPCIE

1*MPCIE,Support 4G/Wifi module

Work Environment

-10℃--60℃(14F~140F) , 30%--90% Humidity

Case Material

Full Brushed Aluminum Alloy

Dimension

PC size 215*176*55mm

Package size 320*260*80mm

Weight

Net 1.4kg; Gross 2.1 kg
