Palm-sized Mini PC Item NO.: M2
Copy and share this link on social network or send it to your friends
CopyProduct Name | Palm-sized Mini PC |
Item NO. | M2 |
Weight | 1.5 kg = 3.3069 lb = 52.9109 oz |
Category | Mini PC |
Brand | HYSTOU |
Creation Time | 2020-07-21 |
Most traditional large desktop consoles have an old-fashioned shape that can no longer meet the aesthetic needs of modern people. However, the stylish appearance design of Hystou Mini PC M2, coupled with small and exquisite design, is very good whether it is placed on a desk, living room or study. The sense of art brings a more pleasant experience to life and work.
Product Highlight M2:
[Faster Running Speed] Equipped with Intel Core processor , pre-installed Windows 10 Pro(64-bit) Mini PC. Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, streaming video, web browsing, gaming, and work.

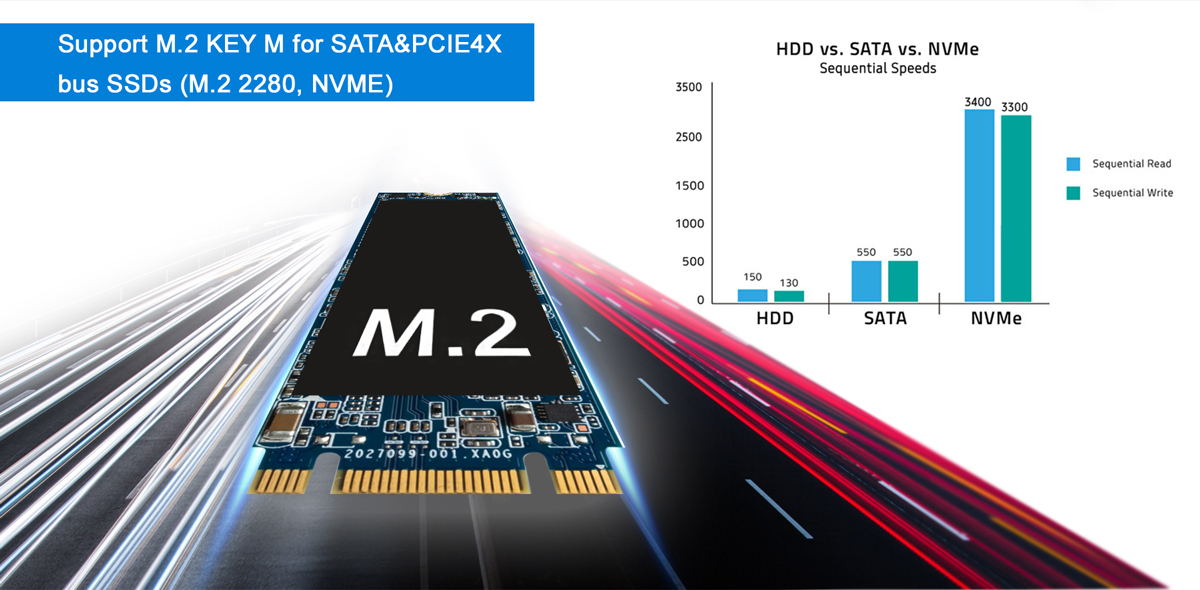

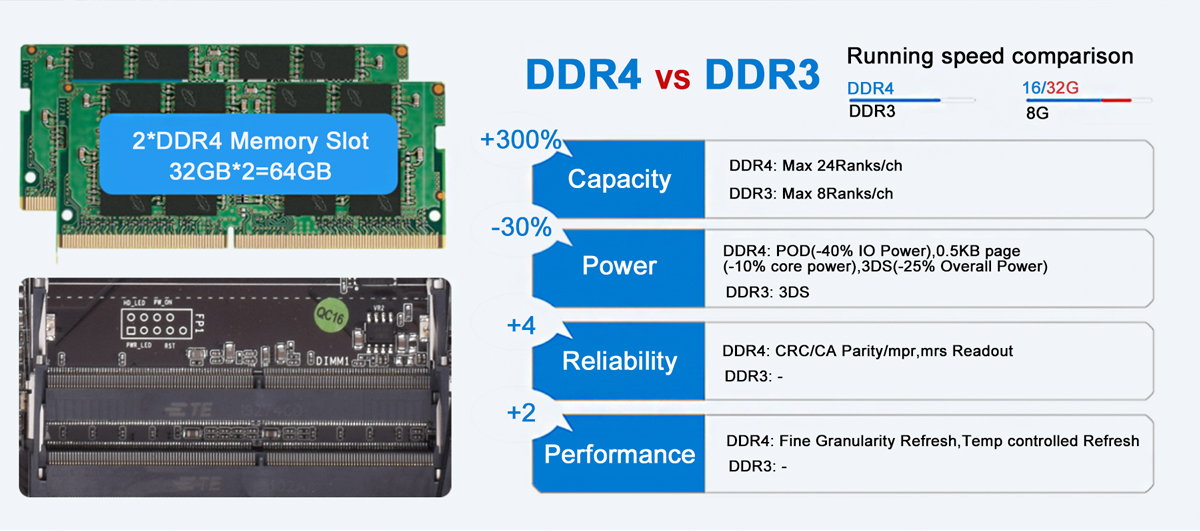

[Memory & Storage] Memory types: 260 pin DDR4 SO-DIMMs. Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory. Storage:1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME),1 x SATA3.0 for 2.5 inch HDD/SSD.

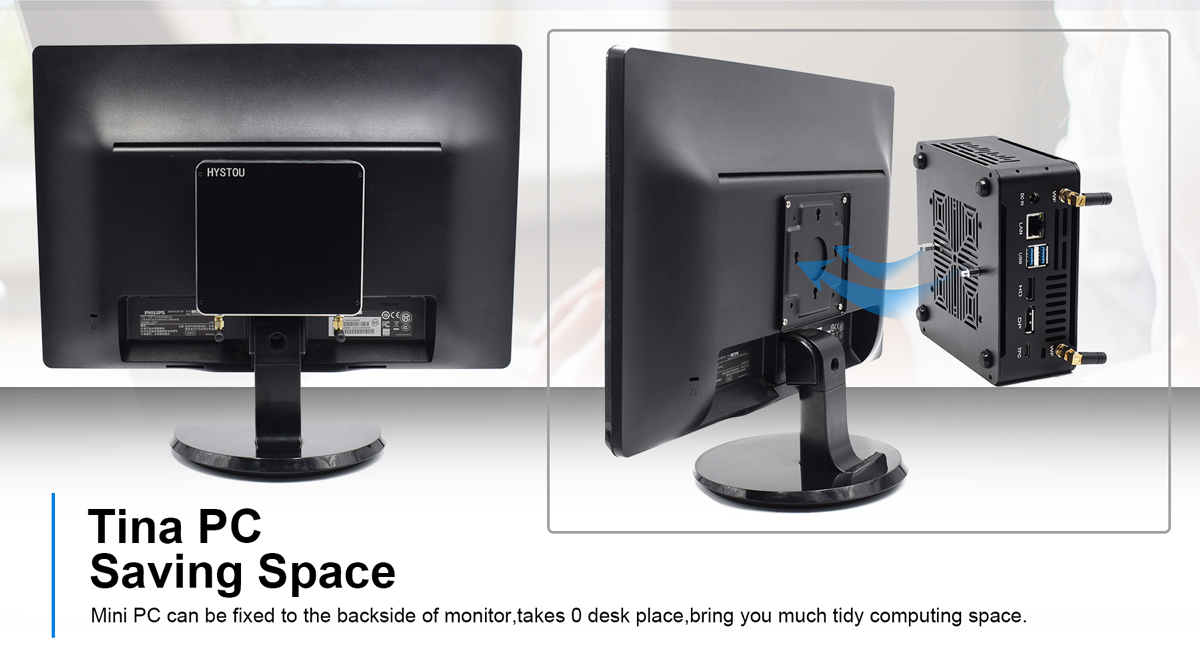

[Small and Portable] The volume of a mini pc is generally 1/30 of the volume of a traditional desktop host, which is approximately equivalent to the thickness of a 130-page book and smaller than a piece of A4 paper. Since the mini host looks like a book standing quietly on the table, the mini host is also called "book computer".

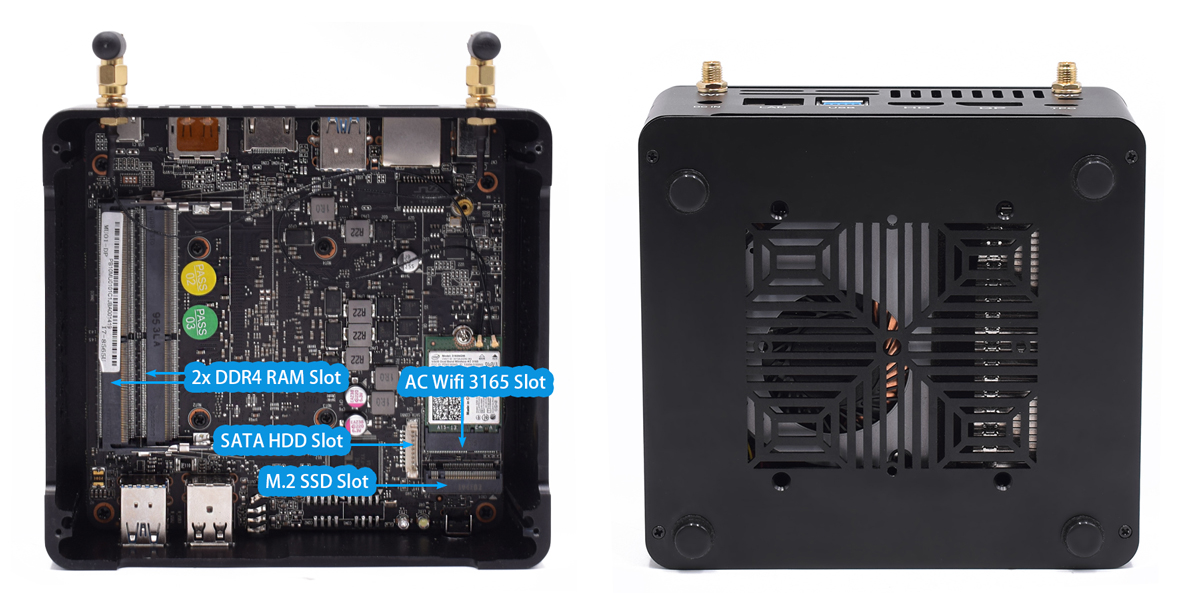

[Easy to Update and Maintain] The mini pc is small and portable, so it is very convenient whether it is software update or hardware update. If you need to expand the memory hard drive, you only need to use a screwdriver to open the cover of the mini host. The motherboard structure and hardware inside the chassis are clear at a glance, which is very easy to replace.
[Windows 10 Pro] Pre-installed with Windows 10 Pro(64bit) OS.Support Auto-on after power failure(1.Press On/Off Switch on the pc and then keep press “Delete”until goes into bios 2.Find “State After G3” under “PCH_IO configuration” page, change “s5 state” to “s0 state”, press “Enter” key. 3.Press “F10” key to save the setting and finish the setting. From now on any illegal shutdown will bring auto power on after the pc connect to main supply.)

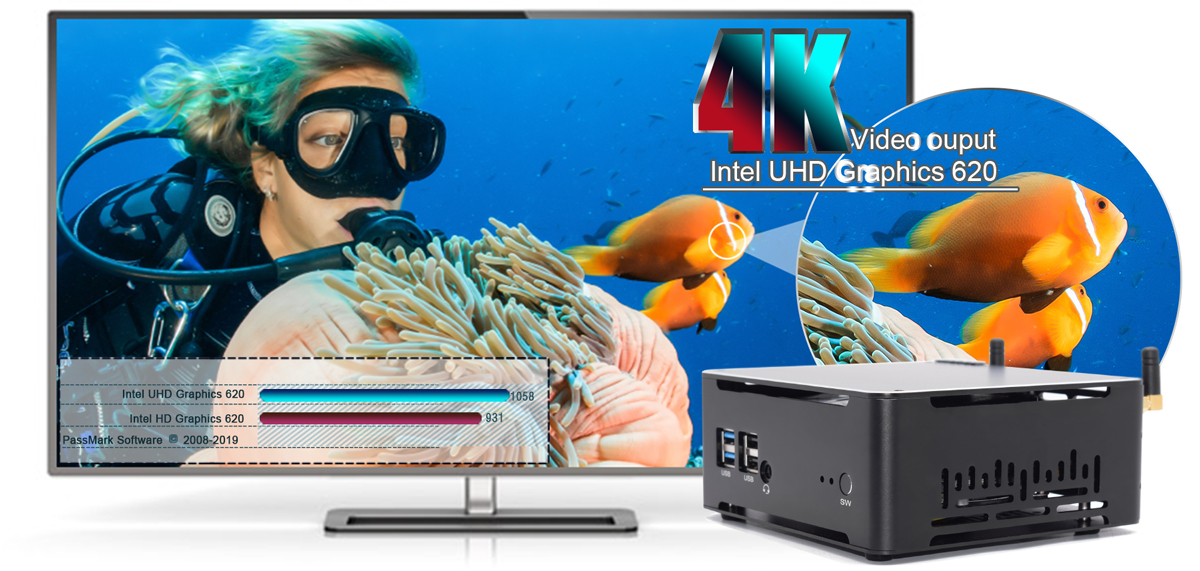

[Great Home Theater PC] The mini desktop computer comes with 4K ultra high definition streaming capability, giving you a best-in-class television experience with true-to-life picture quality, which can be used as a media center to enjoy TV shows or games.

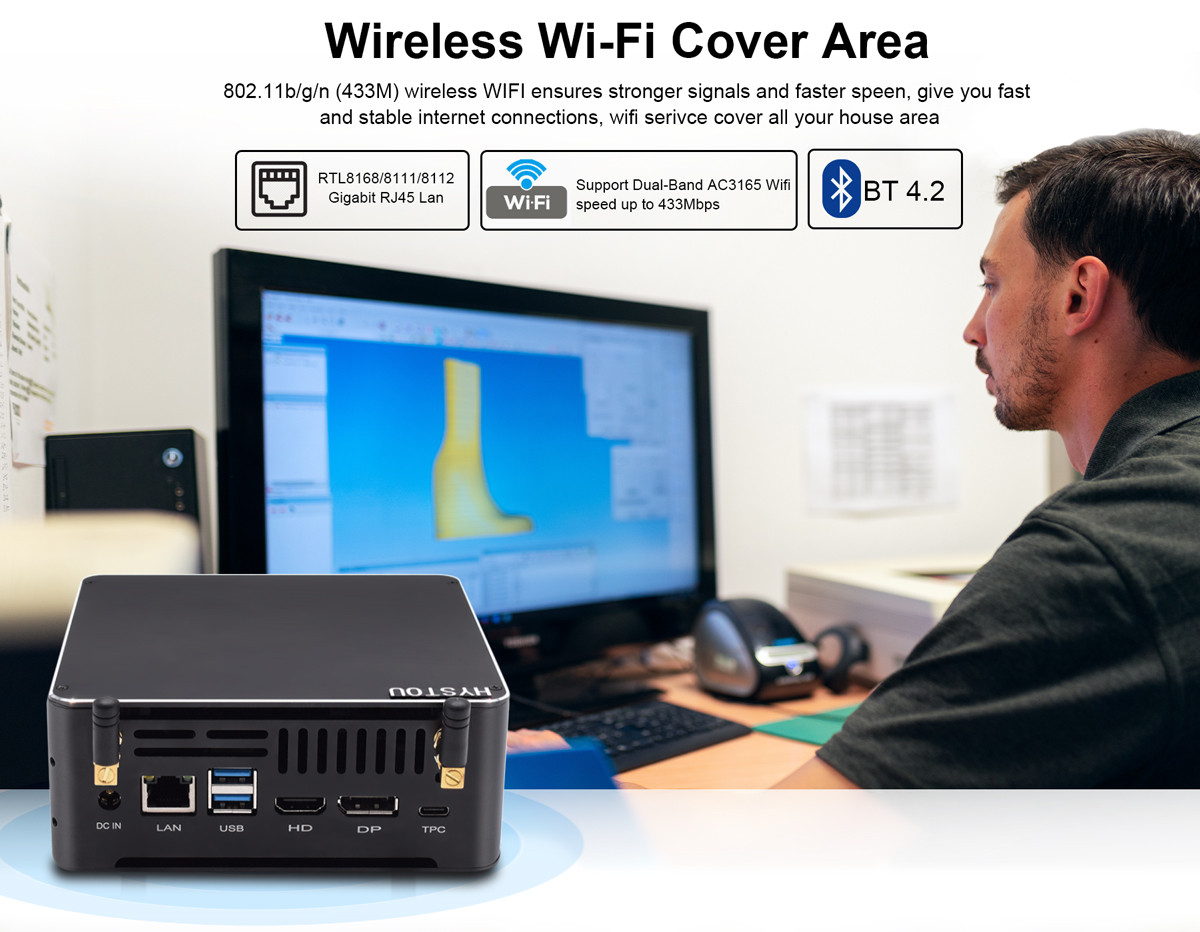

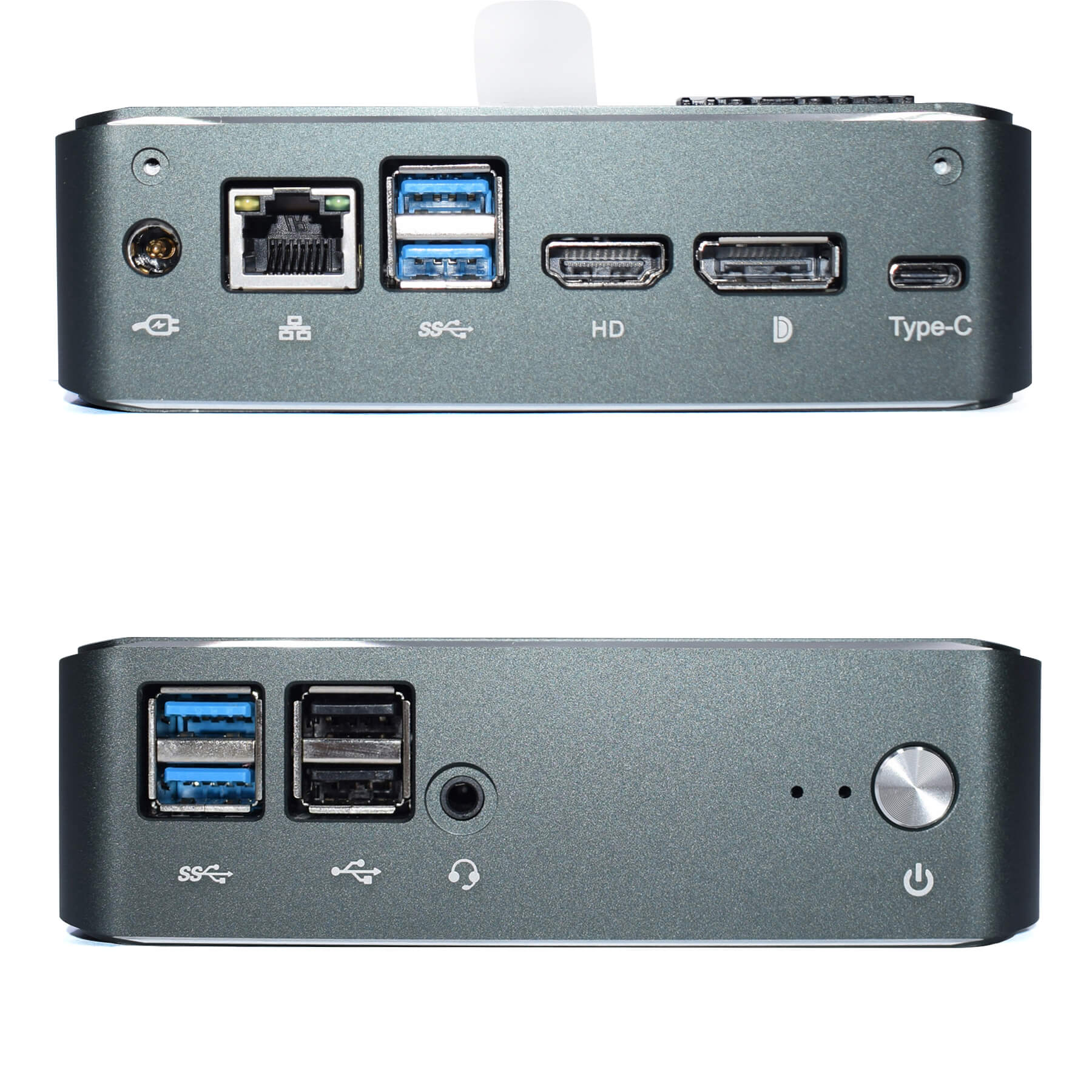

[Rich and Diverse Ports] 4 x USB 3.0 port, 2 x USB 2.0 port, 1 x Type C USB 3.0 port. HDMI + DP Dual 4K output.1 x RTL8168/8111/8112 Gigabit RJ45 Lan.
Available processors:
1.Intel Pentium Gold 5405U(2M Cache, 2 Cores 4 Threads, Base Frequency 2.30 GHz)
2.Intel Core i3-8145U(4M Cache, 4 Cores 8 Threads, Base Frequency 2.10 GHz Turbo Frequency 3.90 GHz)
3.Intel Core i5-8265U(6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90 GHz)
4.Intel Core i7-8565U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.60 GHz)
5.Intel Core i7-10510U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.90 GHz)
Processor |
|
CPU |
Intel Pentium Gold 5405U(2M Cache, 2 Cores 4 Threads, Base Frequency 2.30 GHz) |
TDP |
Pentium/i7-10510U 15 W, others 28W |
CPU Lithography |
14 nm |
Memory Specifications |
|
Max Memory Size |
64GB |
Memory Types |
260 pin DDR4 SO-DIMMs |
Memory Channels |
Dual Channels |
ECC Memory |
Don’t support |
Storage Specification |
|
m.2 SSD |
1 x M.2 KEY M for SATA&PCIE3.0 (M.2 2280, NVME) |
SATA |
1 x SATA3.0 for 2.5 inch HDD/SSD |
mSATA |
NO mSATA slot |
Graphics |
|
Processor Graphics |
Intel® UHD Graphics |
HDMI |
1 x HDMI (4K) |
DP Port |
1 x DP Port (4K) |
Power Specification |
|
Power Adapter |
12V Power Input, supply 12V 5A power adapter within the package |
Auto Power On |
Support Auto Power On Function |
In & Out interfaces |
|
USB Port |
4 x USB 3.0 port, 2 x USB 2.0 port, 1 x Type C USB 3.0 port |
Audio |
3.5mm 1 Jack, MIC in/ Line out |
Video |
HDMI + DP Dual 4K output |
Power Input |
5.5mm 12V In |
Lan Port |
1 x RTL8168/8111/8112 Gigabit RJ45 Lan |
Com Port |
No |
Others |
|
System |
Support Windows 7/10, Linux |
Case Material |
Aluminum Alloy body and plastic top and side panel |
Dimension |
Mini PC size 138x126x40m Package size 310x205x70mm |
Weight |
Gross weight 1.5 kg |
