Home>Mini PC>Palm-sized Mini PC Intel Core i7-8565U
Palm-sized Mini PC Intel Core i7-8565U

Palm-sized Mini PC Intel Core i7-8565U Item NO.: M2-i7-8565U

Write a Review
US$ 490.55
US$ 577.12 Save US$ 86.57 (15% Off)
CPU
Core i7-8565U
Memory
No RAM 4G DDR4 8G DDR4 16G DDR4 32G DDR4 64G DDR4
Storage
No Storage 256G SSD 512G SSD 1TB SSD
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Palm-sized Mini PC Intel Core i7-8565U
Item NO. M2-i7-8565U
Weight 1.5 kg = 3.3069 lb = 52.9109 oz
Category Mini PC
Brand HYSTOU
Creation Time 2020-10-17

Most traditional large desktop consoles have an old-fashioned shape that can no longer meet the aesthetic needs of modern people. However, the stylish appearance design of Hystou Mini PC M2, coupled with small and exquisite design, is very good whether it is placed on a desk, living room or study. The sense of art brings a more pleasant experience to life and work.


Product Highlight M2:

[Faster Running Speed] Equipped with Intel Core processor , pre-installed Windows 10 Pro(64-bit) Mini PC.  Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, streaming video, web browsing, gaming, and work.

[Memory & Storage]   Memory types: 260 pin DDR4 SO-DIMMs. Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory. Storage:1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME),1 x SATA3.0 for 2.5 inch HDD/SSD.

[Small and Portable] The volume of a mini pc is generally 1/30 of the volume of a traditional desktop host, which is approximately equivalent to the thickness of a 130-page book and smaller than a piece of A4 paper. Since the mini host looks like a book standing quietly on the table, the mini host is also called "book computer".

[Easy to Update and Maintain] The mini pc is small and portable, so it is very convenient whether it is software update or hardware update. If you need to expand the memory hard drive, you only need to use a screwdriver to open the cover of the mini host. The motherboard structure and hardware inside the chassis are clear at a glance, which is very easy to replace.

[Windows 10 Pro] Pre-installed with Windows 10 Pro(64bit) OS.Support Auto-on after power failure(1.Press On/Off Switch on the pc and then keep press “Delete”until goes into bios 2.Find “State After G3” under “PCH_IO configuration” page, change “s5 state” to “s0 state”, press “Enter” key. 3.Press “F10” key to save the setting and finish the setting. From now on any illegal shutdown will bring auto power on after the pc connect to main supply.)

[Great Home Theater PC] The mini desktop computer comes with 4K ultra high definition streaming capability, giving you a best-in-class television experience with true-to-life picture quality, which can be used as a media center to enjoy TV shows or games.

[Rich and Diverse Ports] 4 x USB 3.0 port, 2 x USB 2.0 port, 1 x Type C USB 3.0 port. HDMI + DP Dual 4K output.1 x RTL8168/8111/8112 Gigabit RJ45 Lan.


Available processors:

Intel Core i7-8565U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.60 GHz)


Processor

CPU

Intel Core i7-8565U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.60 GHz)

TDP

15 W

CPU Lithography

14 nm

Memory Specifications

Max Memory Size

64GB

Memory Types

260 pin DDR4 SO-DIMMs

Memory Channels

Dual Channels

ECC Memory

Don’t support

Storage Specification

m.2 SSD

1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME)

SATA

1 x SATA3.0 for 2.5 inch HDD/SSD

mSATA

NO mSATA slot

Graphics

Processor Graphics

Intel® UHD Graphics

HDMI

1 x HDMI (4K)

DP Port

1 x DP Port (4K)

Power Specification

Power Adapter

12V Power Input, supply 12V 5A power adapter within the package

Auto Power On

Support Auto Power On Function

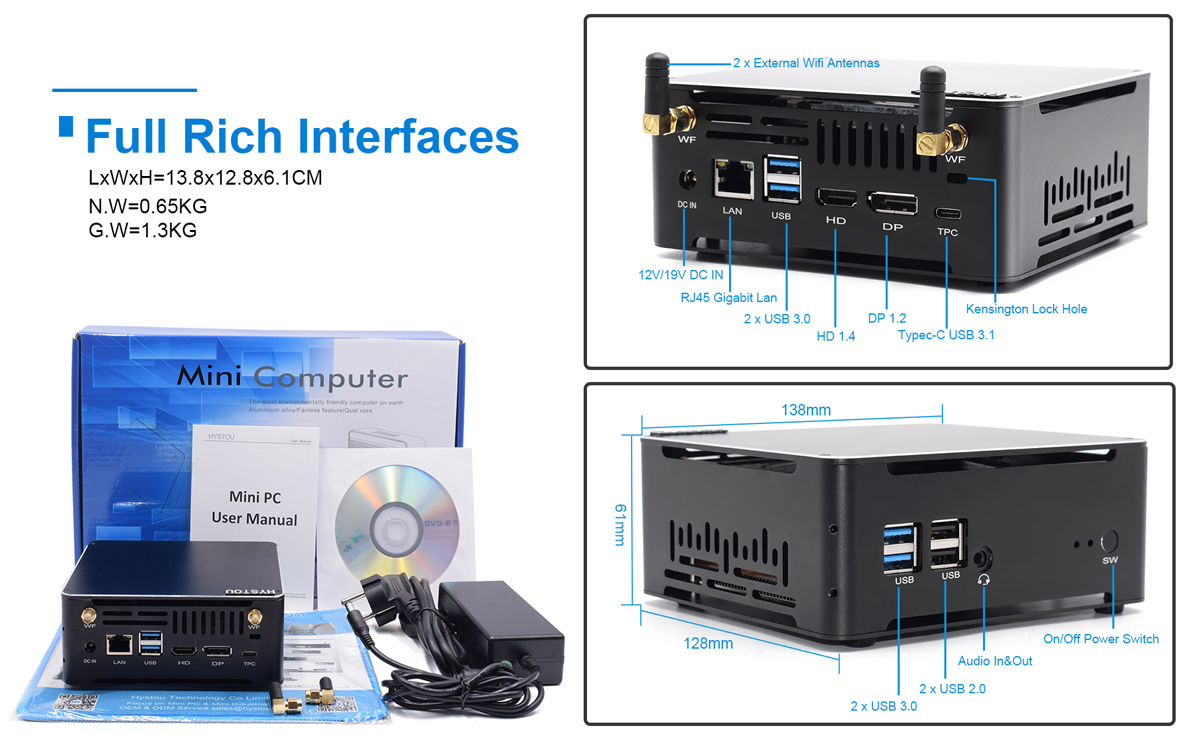

In & Out interfaces

USB Port

4 x USB 3.0 port, 2 x USB 2.0 port, 1 x Type C USB 3.0 port

Audio

3.5mm 1 Jack, MIC in/ Line out

Video

HDMI + DP Dual 4K output

Power Input

5.5mm 12V In

Lan Port

1 x RTL8168/8111/8112 Gigabit RJ45 Lan

Com Port

No

Others

System

Support Windows 7/10, Linux

Case Material

Aluminum Alloy body and plastic top and side panel

Dimension

Mini PC size 138x128x61mm

Package size 310x205x70mm

Weight

Gross weight 1.5 kg
