Mini Industrial Computer with Core i3/i5/i7 Processor

Mini Industrial Computer with Core i3/i5/i7 ProcessorItem NO.: P12B-D4

US$ 518.72
CPU
Core i5-7267U
Core i5-8250U
Core i7-8550U
Core i5-10210U
Core i7-10510U
Memory
No RAM
4G DDR4
8G DDR4
16G DDR4
32G DDR4
64G DDR4
Storage
No Storage
128G SSD
256G SSD
512G SSD
256G SSD+1TB HDD
Quantity
Adding to cart succeed
Mini Industrial Computer with Core i3/i5/i7 Processor
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
    • Product Name: Mini Industrial Computer with Core i3/i5/i7 Processor
    • Item NO.: P12B-D4
    • Weight: 3.5 kg = 7.7162 lb = 123.4589 oz
    • Category: Industrial PC > Mini ITX PC
    • Brand: HYSTOU
    • Creation Time: 2020-07-14

    Industrial computers are industrial control computers specially designed for industrial use. Their basic performance and compatibility are similar to those of commercial computers, but industrial computers pay more attention to stability in different environments. Hystou industrial computers have excellent stability and can adapt to the requirements of various industrial production environments.

    Processor parameter for referance only:

    1. Intel Core i5-7267U 2 cores 4 threads 3.1GHz up to 3.5GHz 4MB cache TDP 28W Intel Iris Plus Graphics 650.

    2. Intel Core i5-8250U 4 cores 8 threads 1.6GHz up to 3.4GHz 6MB cache TDP 15W Intel UHD Graphics 620.

    3. Intel Core i7-8550U 4 cores 8 threads 1.8GHz up to 4.0GHz 8MB cache TDP 15W Intel UHD Graphics 620.

    4. Intel Core i5-10210U 4 cores 8 threads 1.6GHz up to 4.2GHz 6MB cache TDP 15W Intel UHD Graphics.

    5. Intel Core i7-10510U 4 cores 8 threads 1.8GHz up to 4.9GHz 8MB cache TDP 15W Intel UHD Graphics.


    - Fanless system without cooling fan, no any noise, thicker and longer heat-sink fins for working as long as 7x24 hours durably.

    - Brushed Full Aluminum Alloy Silver/Black color shell for heat dissipation, Exquisite production craft on outside design.

    - 2xIntel i201/i211 Gigabit RJ45 LANs, 6xDB9 COM(4xRS232/422/485), 8xUSB(2xUSB inside), PS/2, GPIO and LPT rich ports for different equipments.

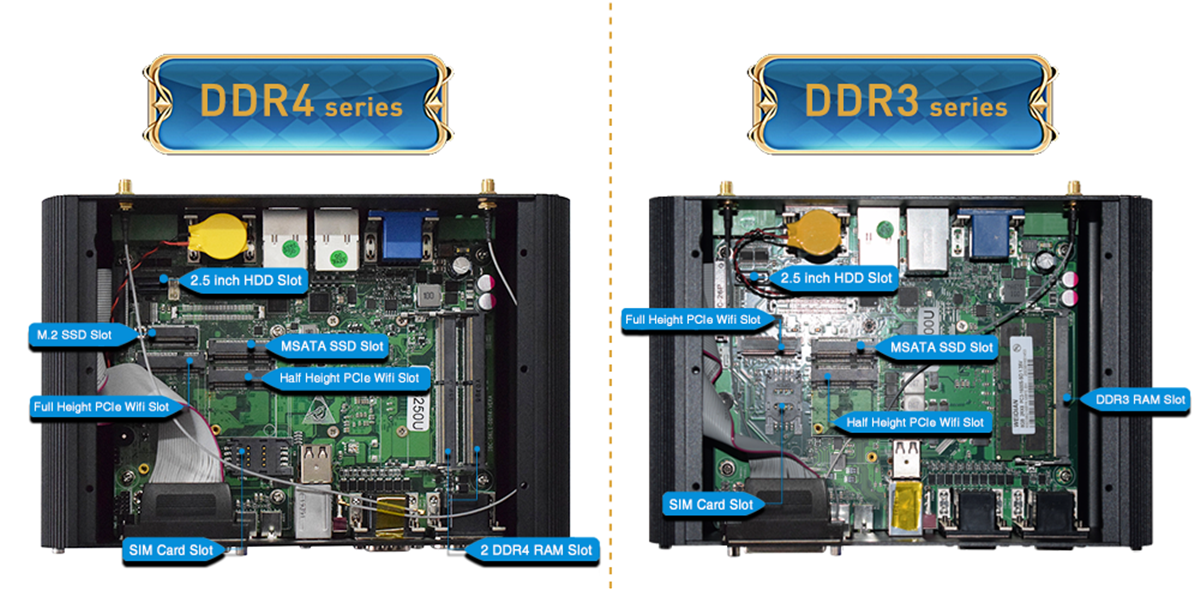

    -3xStorage: 1*MSATA SSD+1*M.2 NVME SSD+1*2.5''SATA installation together;

    - Fit for 9-36V 3pin phoenix terminal power input, ATX/AT quick switch.

    - Support VGA + HDMI dual display output synchronously.

    - One embedded SIM card slot onboard for 3G/4G Wi-Fi.

    - Support Watchdog, AWAL, RTC, WOL(ATX mode), PXE, Reset functions.

    - Low consumption TDP only 10W and can be mounted on the wall.

    Processor

    CPU

    Intel Core i5-7267U (4M Cache, 2 Cores 4 Threads, Base Frequency 3.10 GHz Turbo Frequency 3.50 GHz)

    Intel Core i5-8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40 GHz)

    Intel Core i7-8550U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.00 GHz)

    Intel Core i5-10210U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 4.20 GHz)

    Intel Core i7-10510U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.90 GHz)

    TDP

    15W~28W

    CPU Lithography

    14 nm

    Memory Specifications

    Max Memory Size

    64GB

    Memory Types

    2*DDR4 SO-DIMM 260 pin

    Memory Channels

    Dual Channels

    ECC Memory

    Don’t support

    Storage Specification

    m.2 SSD

    1*M.2 2280 M KEY PCIE3.0

    SATA

    1*SATA3.0 Slot for 2.5 inch HDD/SSD

    mSATA

    1*mSATA slot

    Graphics

    Processor Graphics

        Intel lris Plus Graphics 650 for 7th CPU,Intel UHD Graphics 620 for 8th CPU,Intel UHD Graphics for 10th CPU

    HDMI

    1*HDMI 4096*2304@30Hz(4K)

    DP

    1*VGA 1920*1080@60Hz(1080P)

    Power Specification

    Adapter Output

    DC 12V/5A for 7,8th CPU,19V/4.74A for 10th CPU

    Adapter Input

    AC 110-240V, 50/60HZ

    Consumption

    55W~80W

    Auto Power On

    Support Auto Power On Function

    In & Out interfaces

    USB Port

    4*USB 3.0 port,2*USB 2.0 port

    Audio

    1*3.5mm MIC in & SPK out

    Video

    HDMI 4096*2304@30Hz + VGA 1920*1080@60Hz 2 Display Output

    Audio Cards

    USB Audio Device/Realtek ALC662

    Lan Port

    2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211/I219-V

    Com Port

    6*RS232 Com port/2*RS232 Com port + 4*RS422 Com port or 4*RS485 Com port(Com1~Com4)

    GPIO

    1*18pin GPIO Phoenix Terminal(7*Input 7*Output GPIO)

    Other

    1*PS2,1*Power Button,1*2pin power switch,1*Reset Button,1* Clear CMOS Button;1*ATX/AT switch

    Wi-Fi

    Inside Wifi & Bluetooth Combo

    Others

    System

    Support Windows 10, Linux

    BIOS

    Support RAID,AUTO POWER ON,Wake On LAN,Resume By Alarm,Watch Dog,PXE

    SIM

    1*SIM slot

    MPCIE

    1*MPCIE,Support 4G/WIFI module

    Work Environment

    -10℃--60℃(14F~140F) , 30%--90% Humidity

    Case Material

    Full Brushed Aluminum Alloy

    Dimension

    PC size 249*150*86mm

    Package size 315*285*135mm

    Weight

    Net 2.4kg; Gross 3.3kg
