Mini Fanless Industrial PC with Whiskey Lake Core i3 i5 and i7 CPU

Mini Fanless Industrial PC with Whiskey Lake Core i3 i5 and i7 CPUItem NO.: H4-T

US$ 549.63
Sold Out
Adding to cart succeed
Mini Fanless Industrial PC with Whiskey Lake Core i3 i5 and i7 CPU
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
    • Product Name: Mini Fanless Industrial PC with Whiskey Lake Core i3 i5 and i7 CPU
    • Item NO.: H4-T
    • Weight: 2.8 kg = 6.1729 lb = 98.7671 oz
    • Category: Industrial PC > Mini ITX PC
    • Brand: HYSTOU
    • Creation Time: 2020-07-17

    Industrial computers are industrial control computers specially designed for industrial use. Their basic performance and compatibility are similar to those of commercial computers, but industrial computers pay more attention to stability in different environments. Hystou industrial computers have excellent stability and can adapt to the requirements of various industrial production environments.


    H4-T Mini Industrial PC Highlight:

    [Support 3 Synchronized DisplaysBuilt with 1 x HDMI, 1 x EDP, 1 x Type-C port, support 3 synchronized displays. With integrated Intel HD graphic to enjoy 4K Web surfing, video playback, watching TV, home theater, enjoy the entertainment with your family.

    [Faster Running Speed] Equipped with Intel Core i3-8145Ui5-8265U/i7-8565U processor , pre-installed Windows 10 Pro(64-bit) Mini PC. Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, Streaming video, Web Browsing, Gaming, and Work.

    [Memory & Storage] Memory types: 260 pin DDR4 SO-DIMMs. Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory. Storage:1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME),2 x SATA3.0 for 2.5 inch HDD/SSD.

    [Excellent Waterproof and Dustproof Effect]  Brushed full aluminum alloy silver color shell can effectively waterproof and moisture-proof, increasing the service life of the machine. Fanless operation avoids the requirement of air convection, thereby effectively preventing dust from entering the inside of the mini pc.

    [Save Desktop Space] Due to its compact size, the mini host can be placed upright or lying down, freely placed in any small corner of the table, or fixed behind the monitor or TV screen with a special rack. The mini host frees up broader space resources for office and home life.

    [No noise & Portability] The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can help you save a lot of space.

    [More stable operation] The cooling fan of the fanless mini computer does not use a cooling fan. Instead, a heat sink is distributed on the surface of the chassis. This design solves the problem that the cooling fan works for a long time and causes the internal temperature of the chassis to malfunction, and improves the long-term stability of the mini computer.

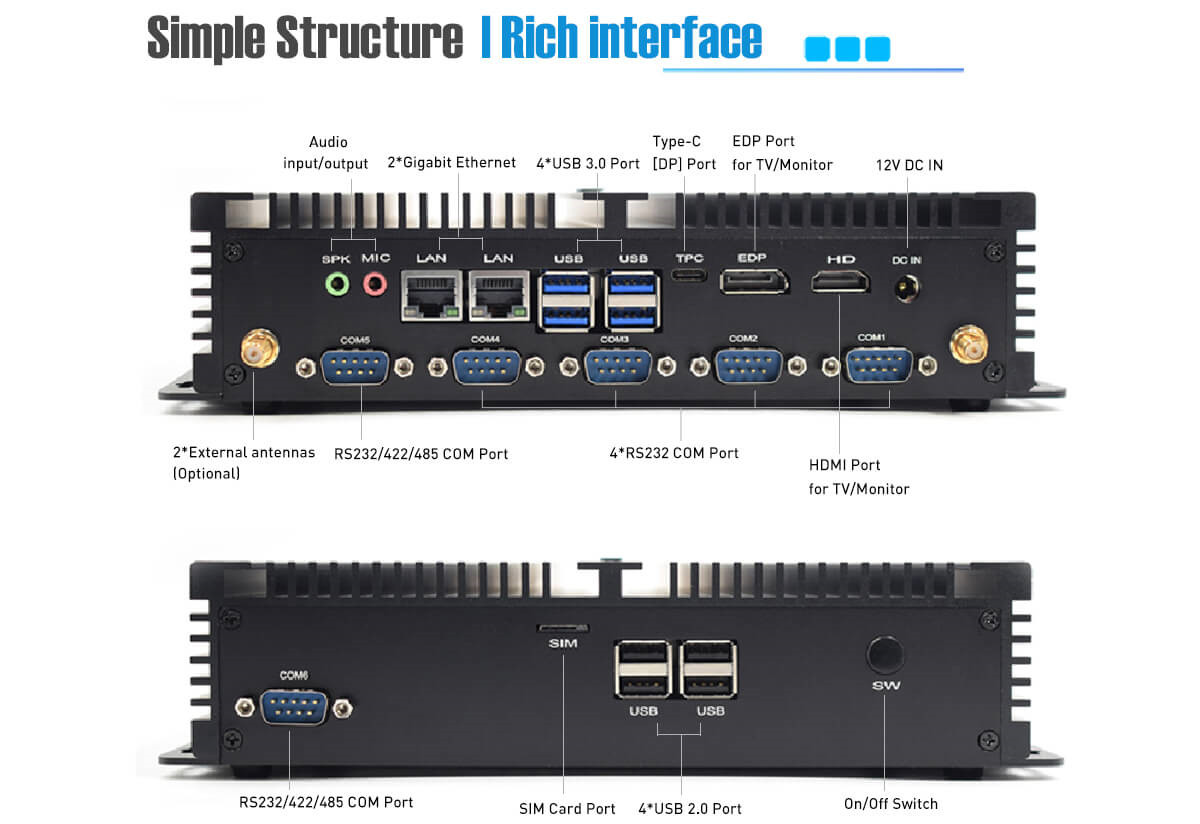

    [Rich and diverse ports] 4 x USB 3.1 port, 4 x USB 2.0 port+1 Type C 3.1. 3.5mm 1 Jack, MIC in/ Line out. HDMI+DP+Type C, support 3 Synchronized displays. 2 x Intel-I210/I211 Gigabit RJ45 Lan. RS232 Com port, 2 RS485 Com port.


    Available Processor:

    1. CPU Intel Core i3 8145U 2 cores 4 threads 2.1GHz up to 3.9Hz 4MB cache TDP 15W Intel UHD Graphics;

    2. CPU Intel Core i5 8265U 4 cores 8 threads 1.6GHz up to 3.9GHz 6MB cache TDP 15W Intel UHD Graphics.

    3. CPU Intel Core i7 8565U 4 cores 8 threads 1.8GHz up to 4.6GHz 8MB cache TDP 15W Intel UHD Graphics.


    Processor

    CPU

    Intel Core i3-8145U (4M Cache, 2 Cores 4 Threads, Base Frequency 2.10 GHz Turbo Frequency 3.90 GHz)

    Intel Core i5-8265U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90 GHz)

    Intel Core i7-8565U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.60 GHz)

    TDP

    15W

    CPU Lithography

    14 nm

    Memory Specifications

    Max Memory Size

    64GB

    Memory Types

    2*DDR4 SO-DIMM 260 pin

    Memory Channels

    Dual Channels

    ECC Memory

    Don’t support

    Storage Specification

    m.2 SSD

    1*M.2 2280 M KEY PCIE3.0

    SATA

    2*SATA3.0 Slot for 2.5 inch HDD/SSD

    mSATA

    No mSATA slot

    Graphics

    Processor Graphics

        Intel UHD Graphics

    HDMI

    1*HDMI 4096*2160@60Hz(4K)

    EDP

    1*EDP 4096*2160@60Hz(4K)

    Type-C

    1*Type-C 4096*2160@60Hz(4K)

    Power Specification

    Adapter Output

    DC 12V/6A

    Adapter Input

    AC 110-240V, 50/60HZ

    Consumption

    52W

    Auto Power On

    Support Auto Power On Function

    In & Out interfaces

    USB Port

    4*USB 3.0 port,4*USB 2.0 port,1*Type-C USB port

    Audio

    1*3.5mm MIC in & SPK out

    Video

    HDMI 4096*2160@60Hz + EDP 4096*2160@60Hz + Type-C 4096*2160@60Hz 3 Display Output

    Audio Cards

    Realtek ALC 662/897

    Lan Port

    2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211

    Com Port

    6*RS232 Com port/4*RS232 Com port, 2*RS485 Com port

    Wi-Fi

    Inside Wifi & Bluetooth Combo

    Others

    System

    Support Windows 10/11, Linux

    BIOS

    Support TPM2.0,RAID,AUTO POWER ON,Wake On LAN,Watchdog,PXE/IPXE

    SIM

    1*SIM slot

    Work Environment

    -10℃--60℃(14F~140F) , 30%--90% Humidity

    Case Material

    Full Brushed Aluminum Alloy

    Dimension

    PC size 238*182*52mm

    Package size 320*260*80mm

    Weight

    Net 1.5kg; Gross 2.2 kg
