Mini Fanless Industrial PC Core i3 i5 and i7 CPU

Mini Fanless Industrial PC Core i3 i5 and i7 CPU Item NO.: P05B-T

Write a Review
US$ 532.46
Core i3-8145U Core i5-8265U
No RAM 4G DDR4 8G DDR4 16G DDR4 32G DDR4 64G DDR4
No Storage 128G SSD 256G SSD 512G SSD 256G SSD+1TB HDD

Copy and share this link on social network or send it to your friends

Product Name Mini Fanless Industrial PC Core i3 i5 and i7 CPU
Item NO. P05B-T
Weight 2.8 kg = 6.1729 lb = 98.7671 oz
Category Fanless Mini PC
Creation Time 2020-09-24

The fanless mini mainframe has better heat dissipation performance than ordinary computer mainframes, and it does not produce noise while dissipating heat, which can create a quiet office environment for you. In addition, it has low power consumption and energy saving features, which can save you a lot of electricity bills. The design of wireless wifi can make your desktop look clean and tidy.

P05B model highlights:
[Faster Running Speed] Equipped with Intel Core i3-8145U/ i5 8265U processor , pre-installed Windows 10 Pro(64-bit) Mini PC. Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, Streaming video, Web Browsing, Gaming, and Work.

[Memory & Storage] Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory. Storage: 1 x M.2 KEY M for SATA&PCIE4X bus SSDs (M.2 2280, NVME),2 x SATA3.0 for 2.5 inch HDD/SSD.

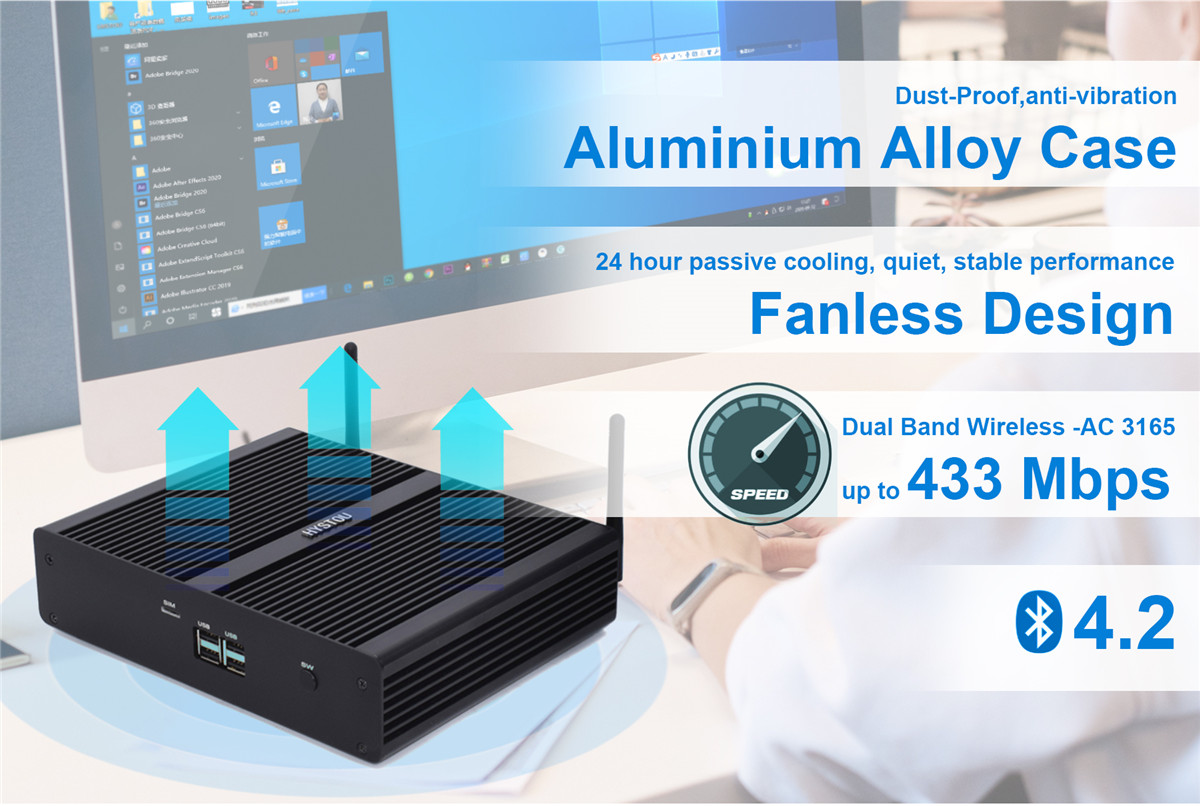

[Excellent Waterproof and Dustproof Effect]  Brushed full aluminum alloy silver color shell can effectively waterproof and moisture-proof, increasing the service life of the machine. Fanless operation avoids the requirement of air convection, thereby effectively preventing dust from entering the inside of the mini pc.

[No noise & Portability] The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can help you save a lot of space.

[More stable operation] The cooling fan of the fanless mini computer does not use a cooling fan. Instead, a heat sink is distributed on the surface of the chassis. This design solves the problem that the cooling fan works for a long time and causes the internal temperature of the chassis to malfunction, and improves the long-term stability of the mini computer.

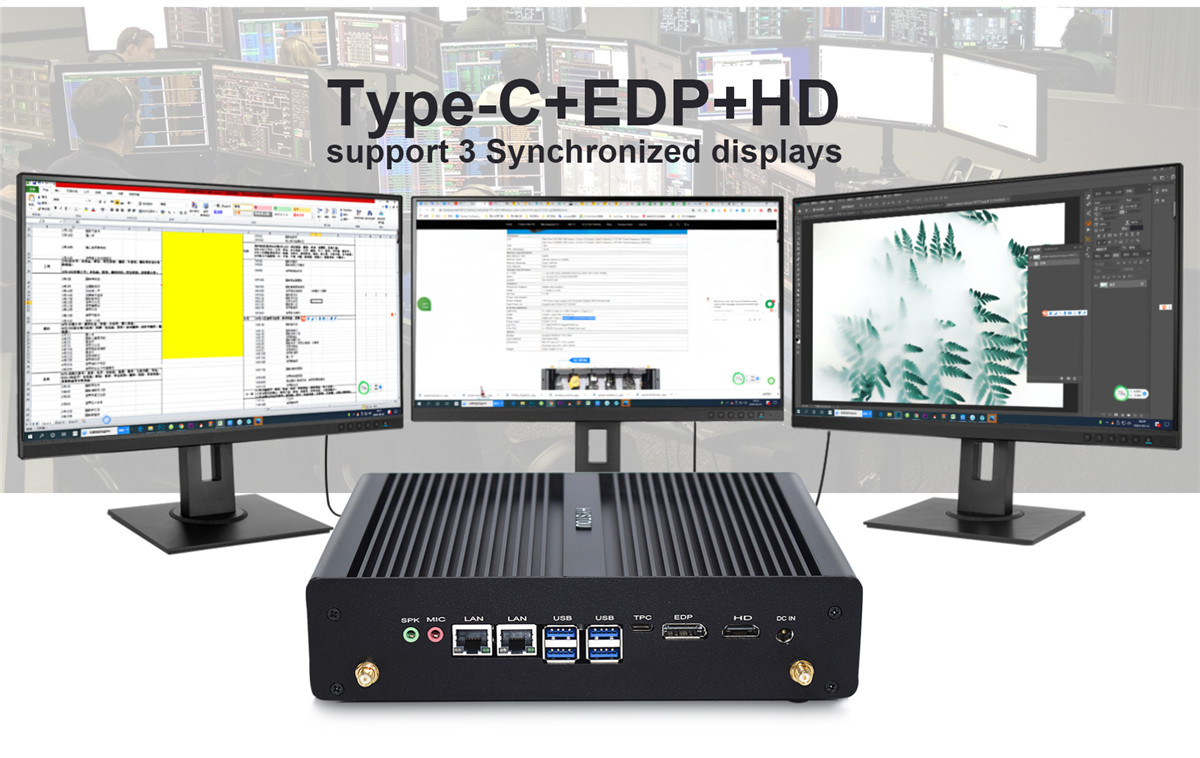

[Support 3 Synchronized DisplaysBuilt with 1xHD, 1XEDP, 1 x Type-C port, support 3 synchronized displays. With integrated Intel HD graphic to enjoy 4K Web surfing, video playback, watching TV, home theater, enjoy the entertainment with your family.

[Great Home Theater PC] The mini desktop computer comes with 4K ultra high definition streaming capability, giving you a best-in-class television experience with true-to-life picture quality, which can be used as a media center to enjoy TV shows or games.

[Rich and diverse ports] 4 x USB 3.1 port, 4 x USB 2.0 port+1 Type C 3.1, 5.5mm 12V In,2 x Intel-I210/I211 Gigabit RJ45 Lan.

Available Processor:

1. CPU Intel Core i3 8145U 2 cores 4 threads 2.1GHz up to 3.9Hz 4MB cache TDP 15W Intel UHD Graphics 620;

2. CPU Intel Core i5 8265U 4 cores 8 threads 1.6GHz up to 3.9GHz 6MB cache TDP 15W Intel UHD Graphics 620.



Intel Core i3-8145U (4M Cache, 2 Cores 4 Threads, Base Frequency 2.10 GHz Turbo Frequency 3.90 GHz)

Intel Core i5-8265U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90 GHz)

Intel Core i7-8565U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.60 GHz)



CPU Lithography

14 nm

Memory Specifications

Max Memory Size


Memory Types

2*DDR4 SO-DIMM 260 pin

Memory Channels

Dual Channels

ECC Memory

Don’t support

Storage Specification

m.2 SSD

1*M.2 2280 M KEY PCIE3.0


2*SATA3.0 Slot for 2.5 inch HDD/SSD


No mSATA slot


Processor Graphics

    Intel UHD Graphics


1*HDMI 4096*2160@60Hz(4K)


1*EDP 4096*2160@60Hz(4K)


1*Type-C 4096*2160@60Hz(4K)

Power Specification

Adapter Output

DC 12V/6A

Adapter Input

AC 110-240V, 50/60HZ



Auto Power On

Support Auto Power On Function

In & Out interfaces

USB Port

4*USB 3.0 port,4*USB 2.0 port,1*Type-C USB port


1*3.5mm MIC in & SPK out


HDMI 4096*2160@60Hz + EDP 4096*2160@60Hz + Type-C 4096*2160@60Hz 3 Display Output

Audio Cards

Realtek ALC 662/897

Lan Port

2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211


Inside Wifi & Bluetooth Combo



Support Windows 10/11, Linux




1*SIM slot

Work Environment

-10℃--60℃(14F~140F) , 30%--90% Humidity

Case Material

Full Brushed Aluminum Alloy


PC size 215*176*55mm

Package size 320*260*80mm


Net 1.4kg; Gross 2.1 kg
