Home Theater Fanless Mini PC Intel Core i7

Home Theater Fanless Mini PC Intel Core i7 Item NO.: P05B-D4 Public model

5.0
(1)
Write a Review
US$ 635.51
CPU
Core i7-8565U Core i7-10510U
Memory
No RAM 4G DDR4 8G DDR4 16G DDR4 32G DDR4 64G DDR4
Storage
No Storage 256G SSD 512G SSD 1TB SSD 512G SSD+1TB HDD
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Home Theater Fanless Mini PC Intel Core i7
Item NO. P05B-D4 Public model
Weight 2.8 kg = 6.1729 lb = 98.7671 oz
Category Fanless Mini PC
Brand HYSTOU
Creation Time 2020-07-13

Hystou Fanless Mini PCs are designed for unique, office, home and training applications. The minicomputer's compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.


The majority of Comet Lake remains in the same 4-core/8-thread configuration used by Ice Lake, though there’s one single 6-core/12-thread chip. Intel also confirmed that Comet Lake does not use the “Sunny Cove” CPU architecture of Ice Lake. Technically, Comet Lake is built on a 14nm++ process, Intel confirmed.

Highlights:

1)- Advanced newest intel processor, assure powerful performance for gaming, office, drawing;

2)- 2*DDR4 RAM slots 2xfaster than 1 ram slot, DDR4 2xfaster than DDR3;

3)- Triple-Storage: support 1*Msata SSD+1*M.2 NVMe(22x80) SSD+1*2.5'' SATA HD;

4)- Noiseless: Fanless system, all aluminum passive heatsink, low consumption, 0.00dB noise;

5)- Slim volume: Can stand on desk by free bracket we supply, mount back of monitor by VESA bracket;


Available Processors:

1. Intel® Core™ i7-8565U Processor (8M Cache, up to 4.6 GHz);

2. Intel® Core™ i7-10510u Processor (8M Cache, up to 4.9 GHz);


Processor

CPU

Intel Core i7-8565U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.60 GHz)

Intel Core i7-10510U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.90 GHz)

TDP

15W

CPU Lithography

14 nm

Memory Specifications

Max Memory Size

64GB

Memory Types

2*DDR4 SO-DIMM 260 pin

Memory Channels

Dual Channels

ECC Memory

Don’t support

Storage Specification

m.2 SSD

1*M.2 2280 M KEY PCIE3.0

SATA

1*SATA3.0 Slot for 2.5 inch HDD/SSD

mSATA

1* mSATA slot

Graphics

Processor Graphics

   Intel UHD Graphics

HDMI

1*HDMI 4096*2160@30Hz(4K)

DP

1*DP 4096*2160@60Hz(4K)

Power Specification

Adapter Output

DC 12V/5A

Adapter Input

AC 110-240V, 50/60HZ

Consumption

50W

Auto Power On

Support Auto Power On Function

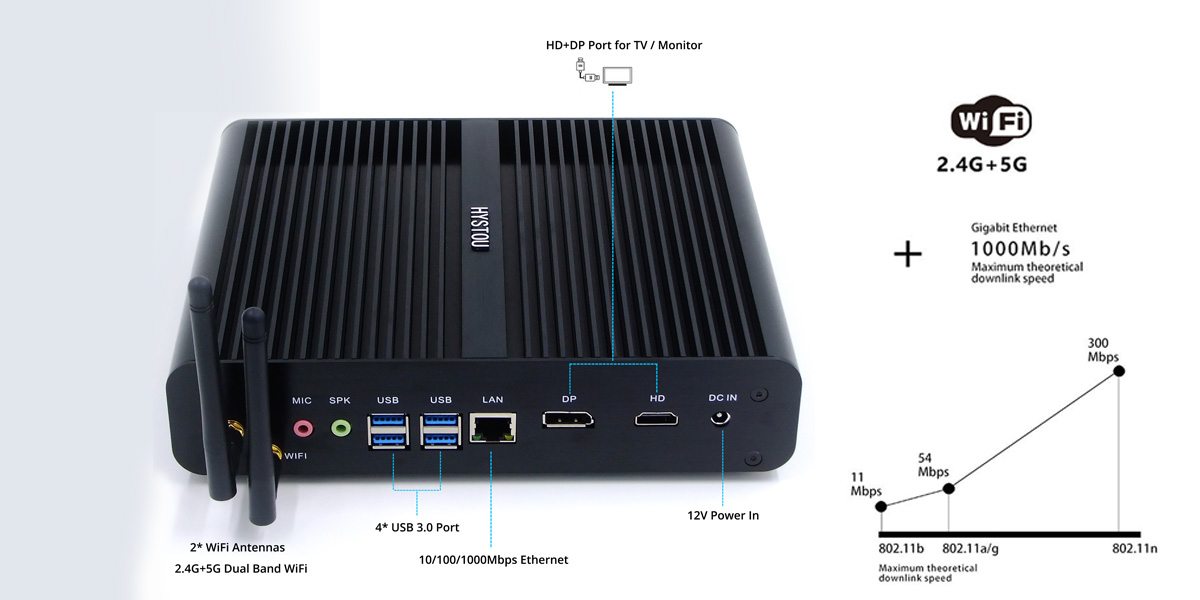

In & Out interfaces

USB Port

4*USB 3.0 port,4*USB 2.0 port

Audio

1*3.5mm MIC in & SPK out

Video

HDMI 4096*2160@30Hz + DP 4096*2160@60Hz 2 Display Output

Audio Cards

Realtek ALC 662/897

Lan Port

1*RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111

Wi-Fi

Inside Wifi & Bluetooth Combo

Others

System

Support Windows 10/11, Linux

BIOS

Support AUTO POWER ON,PXE

Work Environment

-10℃--60℃(14F~140F) , 30%--90% Humidity

Case Material

Full Brushed Aluminum Alloy

Dimension

PC size 215*176*55mm

Package size 320*260*80mm

Weight

Net 1.4kg; Gross 2.1 kg
