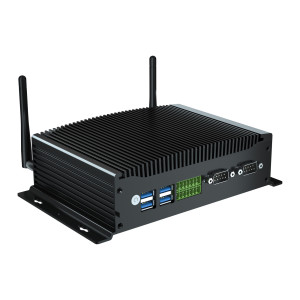

- Product Name: Fanless PC Mini Industrial Computer Core i3 i5 i7
- Item NO.: H6
- Weight: 1 kg = 2.2046 lb = 35.2740 oz
- Category: Mini PC
- Brand: HYSTOU
- Creation Time: 2022-06-16
Industrial computers are industrial control computers specially designed for industrial use. Their basic performance and compatibility are similar to those of commercial computers, but industrial computers pay more attention to stability in different environments. HYSTOU industrial computers have excellent stability and can adapt to the requirements of various industrial production environments.
Why choose our H6 Mini PC?
Latest 10th Intel Core i7-10810U - H6 has a significant improvement in graphics and performance.
Most popular product in 2022 - It is very cost-effective.
Rich Ports - 2 x RJ45 Gigabit Ethernet ports, 4 x USB 3.0 ports, 2 x USB 2.0 ports
Multi Display Support - Support Three Display, enabling to connect high-speed USB HUB, video cards, multiple monitors at the same time.
Personal Function - Support Auto Power on / RTC Wake Up / Wake On LAN / Network Boot.
One-to-One Service - 7 days/24 hours of pre-sales and after-sales support, with dedicated engineers and forums to meet the needs of timely interaction.
Processor
CPU
Intel Core i3-8140U (4M Cache, 2 Cores 4 Threads, Base Frequency 2.10 GHz Turbo Frequency 3.90 GHz)
Intel Core i5-8260U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90 GHz)
Intel Core i5-10210U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 4.20 GHz)
Intel Core i5-10310U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.70 GHz Turbo Frequency 4.40 GHz)
Intel Core i7-10810U (12M Cache, 6 Cores 12 Threads, Base Frequency 1.10 GHz Turbo Frequency 4.90 GHz)
TDP
15W
CPU Lithography
14 nm
Memory Specifications
Max Memory Size
64GB
Memory Types
2*DDR4 SO-DIMM 260 pin
Memory Channels
Dual Channels
ECC Memory
Don’t support
Storage Specification
m.2 SSD
1*M.2 2280 M KEY PCIE3.0
SATA
1*SATA3.0 Slot for 2.5 inch HDD/SSD
mSATA
NO mSATA slot
Graphics
Processor Graphics
Intel UHD Graphics 620 for 8th CPU, Intel UHD Graphics for 10th CPU
HDMI
1*HDMI 4096*2160@30Hz(4K) + 1*HDMI 4096*2160@60Hz(4K)
DP
1*DP 4096*2160@60Hz(4K)
Power Specification
Adapter Output
DC 12V/5A
Adapter Input
AC 110-240V, 50/60HZ
Consumption
50W
Auto Power On
Support Auto Power On Function
In & Out interfaces
USB Port
2*USB 2.0 port,4*USB 3.0 port
Audio
1*3.5mm MIC in & SPK out
Video
HDMI 4096*2160@30Hz + HDMI 4096*2160@60Hz + DP 4096*2160@60Hz 3 Display Output
Audio Cards
USB Audio Device
Lan Port
2*RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
Com Port
2*RS232 Com port,Support RS422/RS485 Com port
GPIO
1*14pin GPIO Phoenix Terminal(5*Input 5*Output GPIO)
Wi-Fi
Inside Wifi & Bluetooth Combo
Others
System
Support Windows 10/11, Linux
BIOS
Support RAID,AUTO POWER ON,Wake On LAN,Resume By Alarm,PXE
SIM
1*SIM slot,Support Nano-SIM,SIM Size:9mm*12mm
MPCIE
1*MPCIE,Support 3G/4G module
Work Environment
-10℃--60℃(14F~140F) , 30%--90% Humidity
Case Material
Aluminum Alloy
Dimension
PC size 205*125*53mm
Package size 308*206*75mm
Weight
Net 1.2kg; Gross 1.9kg
