Fanless Mini PC P05B with 5th Gen Core i3 i5 i7 Processor

Fanless Mini PC P05B with 5th Gen Core i3 i5 i7 Processor Item NO.: P05B-D3

5.0
(1)
Write a Review
US$ 343.52
CPU
Intel® Core™ i3-5005U Intel® Core™ i5-5200U Intel® Core™ i7-5500U
Memory
No RAM 2G DDR3 4G DDR3 8G DDR3 16G DDR3(2*8G)
Storage
No Storage 64G SSD 128G SSD 256G SSD 512G SSD 1TB SSD 500G HDD 1TB HDD 256G SSD+1TB HDD 512G SSD+1TB HDD
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Fanless Mini PC P05B with 5th Gen Core i3 i5 i7 Processor
Item NO. P05B-D3
Weight 2.6 kg = 5.7320 lb = 91.7123 oz
Category Fanless Mini PC
Tag fanless mini pc , mini pc , fanless pc , hystou
Brand HYSTOU
Creation Time 2020-07-03

The 5th generation Intel Core processor delivers a dramatic boost in graphics and CPU performance, driving Internet of Things (IoT) innovation while maintaining compatibility with previous generations. Compare to 4th generation Intel Core processor, it get 35% more transistors, 22% better in 3D graphics, 50% faster in video conversion, etc.

Main advantages of this mini pc:

[Faster Running Speed] Equipped with Intel Broadwell Core processor , pre-installed Windows 10 Pro(64-bit) Mini PC. Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, Streaming video, Web Browsing, Gaming, and Work.

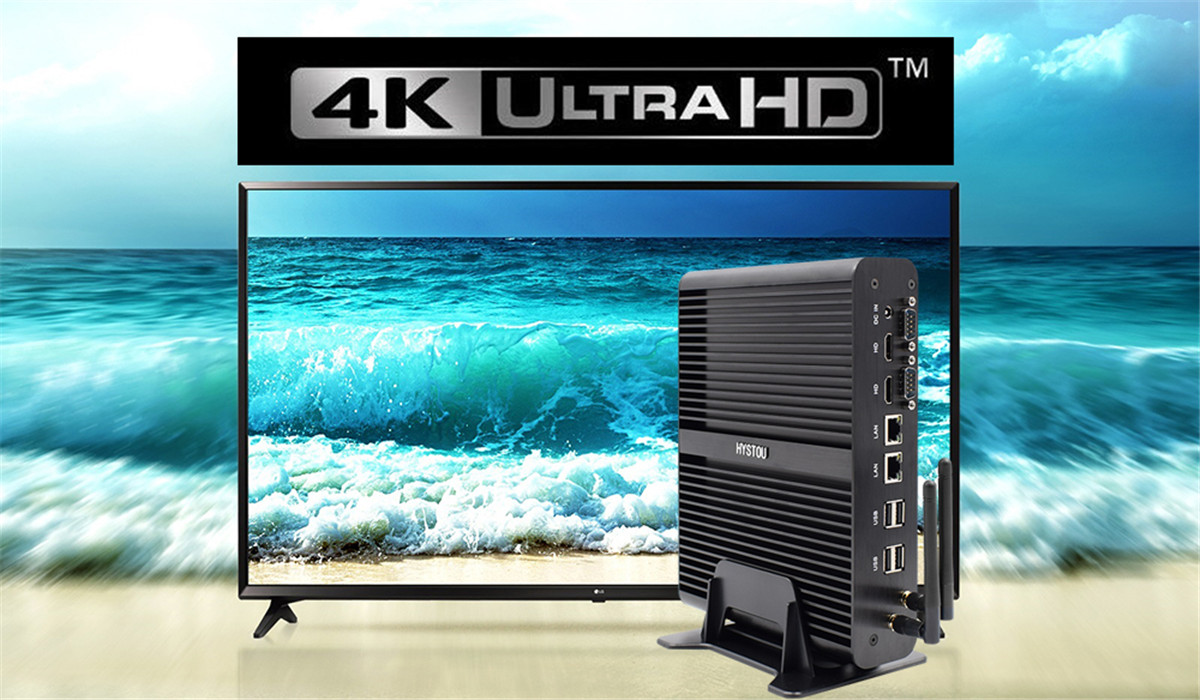

[Great Home Theater PC] The mini desktop computer comes with 4K ultra high definition streaming capability, giving you a best-in-class television experience with true-to-life picture quality, which can be used as a media center to enjoy TV shows or games.
[Memory expansion] Equipped with 204 pin DDR3L 16G RAM. The memory can be expanded up to 128 GB with a micro SD card and up to 2 TB with a standard 2.5-inch SATA HDD / SSD . You can also plug in a 2TB mobile hard drive box via the USB 3.0 interface.
[Dual Screen Display]Built with 2 x HDMI (4K) port, seamlessly connecting two monitors. With integrated Intel HD graphic to enjoy 4K Web surfing, video playback, watching TV, home theater, enjoy the entertainment with your family. Support 2.4G/5.8G Band WiFi.
[Windows 10 Pro] Pre-installed with Windows 10 Pro(64bit) OS.Support Auto-on after power failure(1.Press On/Off Switch on the pc and then keep press “Delete”until goes into bios 2.Find “State After G3” under “PCH_IO configuration” page, change “s5 state” to “s0 state”, press “Enter” key. 3.Press “F10” key to save the setting and finish the setting. From now on any illegal shutdown will bring auto power on after the pc connect to main supply.)
[Unique design&Function] Come with a wall-mounted holder to allow you to hang mini computer behind monitor. Saving your desk space and letting you desk look more tidy. Mini PC Support Wake On LAN, PXE Boot, RTC Wake, Auto Power On ( get into BIOS interface settings)
[No noise & portability] The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can save a lot of space.
[Reliable Lifetime Service] Our group has been dedicating to the production and R&D design of Mini PC for many years. And all our products have passed strict inspesction before outgoing. If you have any questions, Please don't hesitate to contact Us. And we are 100% guaranteed to solve your problems. We offer 3 year limited parts and on-site service, toll-free lifetime technical support online. All of our products obtained FCC, CE, ROSH Certifications.



Onboard Intel broadwell 5th generation processor. Available processors:

1. Intel® Core™ i7-5500U Processor (4M Cache, up to 3.0 GHz)
2. Intel® Core™ i5-5200U Processor (3M Cache, up to 2.70 GHz)
3. Intel® Core™ i3-5005U Processor (3M Cache, up to 2.0 GHz)



Processor

CPU

Intel Broadwell Core i7-5500U (4M Cache, 2 Cores 4 Threads, Base Frequency 2.40 GHz Turbo Frequency 3.0 GHz)

Intel Broadwell Core i5-5200U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.20 GHz Turbo Frequency 2.70 GHz)

Intel Broadwell Core i3-5005U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.0 GHz)

Chipset

Intel 5th Generation Intel Core SOC Chipset

TDP

15W

CPU Lithography

14 nm

Memory Specifications

Max Memory Size

16GB

Memory Types

204 pin DDR3L SO-DIMMs

Memory Channels

Dual Channels

ECC Memory

Don’t support

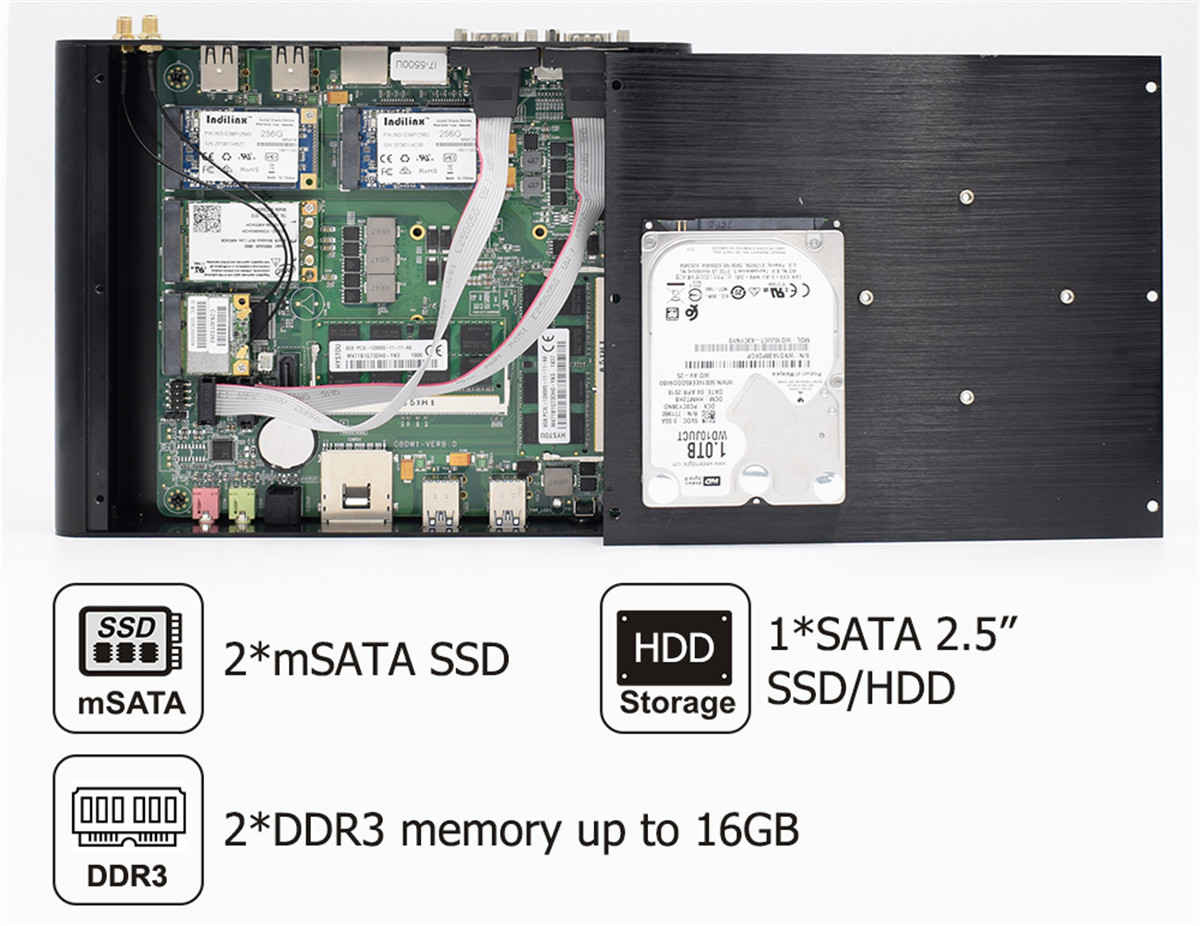

Storage Specification

m.2 SSD

No

SATA

1 x SATA3.0 for 2.5 inch HDD/SSD

mSATA

2 x mSATA SSD

Graphics

Processor Graphics

Intel HD Graphics 5500

HDMI

2 x HDMI (4K)

Power Specification

Power Adapter

12V Power Input, supply 12V 5A power adapter within the package

Auto Power On

Support Auto Power On Function

In & Out interfaces

USB Port

4 x USB 3.0 port, 4 x USB 2.0 port

SD Card

1 x SD card reader slot

Audio

1 x Optical audio port

1 x 3.5mm MIC in & SPK out

Video

Dual HDMI 4K output

Power Input

12V In

Switch

1 x Power On/Off switch

Lan Port

2 x RJ45 Lan, RTL8168/8111/8112 Gigabit Ethernet Controller

Wi-Fi

2.4G&5G 300Mbps & Bluetooth

2 x external Wi-Fi antennas

Others

System

Support Windows 7/10, Linux

Case Material

Aluminum Alloy

Dimension

Mini PC size 224 x 185x50mm

Package size 320 x 258 x 78mm

Weight

Gross weight 2.6 kg


2020-08-29

Bo****en

Delivery was on time. The hardware was exactly as ordered. Fanless but still runs cool. The 12VDC input is a nice feature for alternate power sources. Two Ethernet ports, WiFi, Bluetooth, and front and back USB ports makes for easy interfacing. The serial ports interface to some older hardware of mine, making the PC more versatile. Have not used the optical audio port yet but good to have. Appreciated the options for storage and RAM when ordering. Very helpful sales representative. Recommended.
