Fanless Mini ITX Computer P04

Fanless Mini ITX Computer P04 Item NO.: P04-D3

Write a Review
US$ 188.94
CPU
Celeron 1007U Core i3-4005U Core i5-4200U Core i3-5005U Core i5-5250U Core i3-6006U Core i3-6157U Core i3-7167U Core i5-7200U
Memory
No RAM 2G DDR3/L 4G DDR3/L 8G DDR3/L 16G DDR3/L
Storage
No Storage 64G SSD 128G SSD 256G SSD 512G SSD 500G HDD 1TB HDD 256G SSD+1TB HDD
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Fanless Mini ITX Computer P04
Item NO. P04-D3
Weight 2.1 kg = 4.6297 lb = 74.0753 oz
Category Industrial PC
Brand HYSTOU
Creation Time 2020-07-10

Hystou Fanless Mini PC are designed for unique, office, home and training applications. The minicomputer's compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.


Product Highlight:
[Faster Running Speed] Equipped with Intel Core processor , pre-installed Windows 10 Pro 64-bit Mini PC. Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, Streaming video, Web Browsing, Gaming, and Work.
[Great Home Theater PC] The mini desktop computer comes with 4K ultra high definition streaming capability, giving you a best-in-class television experience with true-to-life picture quality, which can be used as a media center to enjoy TV shows or games.
[Memory expansion] Equipped with 204 Pin DDR3L 8G RAM. The memory can be expanded up to 128 GB with a micro SD card and up to 2 TB with a standard 2.5-inch SATA HDD / SSD . You can also plug in a 2TB mobile hard drive box via the USB 3.0 interface.
[Dual Screen Display]Built with 1*HDMI and 1*VGA port, seamlessly connecting two monitors. With integrated Intel HD graphic to enjoy 4K Web surfing, video playback, watching TV, home theater, enjoy the entertainment with your family. Support 2.4G/5.8G Band WiFi.
[Windows 10 Pro] Pre-installed with Windows 10 Pro(64bit) OS.Support Auto-on after power failure(1.Press On/Off Switch on the pc and then keep press “Delete”until goes into bios 2.Find “State After G3” under “PCH_IO configuration” page, change “s5 state” to “s0 state”, press “Enter” key. 3.Press “F10” key to save the setting and finish the setting. From now on any illegal shutdown will bring auto power on after the pc connect to main supply.)
[Unique design&Function]  Dual intel gigabit RJ45 lan, 2 hdmi display output and 6 rs232 com ports. Come with a wall-mounted holder to allow you to hang mini computer behind monitor. Saving your desk space and letting you desk look more tidy, Mini PC Support Wake On LAN, PXE Boot, RTC Wake, Auto Power On( get into BIOS interface settings)
[No noise & portability] The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can save a lot of space.
[Reliable Lifetime Service] Our group has been dedicating to the production and R&D design of Mini PC for many years. And all our products have passed strict inspesction before outgoing. If you have any questions, Please don't hesitate to contact Us. And we are 100% guaranteed to solve your problems. We offer 3 year limited parts and on-site service, toll-free lifetime technical support online. All of our products obtained FCC, CE, ROSH Certifications.


Available processors:

1. Intel Celeron 1007U Processor (2M Cache, up to 1.5 GHz); Single ram slot, support DDR3L 8G RAM max;

2. Intel® Core™ i3-4005U Processor (3M Cache, up to 1.7 GHz); Dual ram slot, support DDR3L 16G RAM max;

3. Intel® Core™ i3-5005U Processor (3M Cache, up to 2.0 GHz); Dual ram slot, support DDR3L 16G RAM max;

4. Intel® Core™ i5-4200U Processor (3M Cache, up to 2.6 GHz); Dual ram slot, support DDR3L 16G RAM max;

5. Intel® Core™ i5-5250U Processor (3M Cache, up to 2.7 GHz); Dual ram slot, support DDR3L 16G RAM max;

6. Intel® Core™ i3-6006U Processor (3M Cache, up to 2.0 GHz); Dual ram slot, support DDR3L 16G RAM max;

7. Intel® Core™ i3-6157U Processor (3M Cache, up to 2.4 GHz); Dual ram slot, support DDR3L 16G RAM max;

8. Intel® Core™ i3-7167U Processor (3M Cache, up to 2.8 GHz); Dual ram slot, support DDR3L 16G RAM max;

9. Intel® Core™ i5-7200U Processor (3M Cache, up to 3.1 GHz); Dual ram slot, support DDR3L 16G RAM max;



Processor

CPU

Intel Celeron 1007U (3M Cache, 2 Cores 2 Threads, Base Frequency 1.50 GHz )

Intel Core i3-4005U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.70 GHz )

Intel Core i3-5005U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.0 GHz )

Intel Core i3-6006U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.0 GHz )
  Intel Core i3-6157U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.40 GHz )
  Intel Core i3-7167U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.0 GHz )

Intel Core i5-4200U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.60 GHz Turbo Frequency 2.60 GHz)

Intel Core i5-5250U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.60 GHz Turbo Frequency 2.70 GHz)

Intel Core i5-7200U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.50 GHz Turbo Frequency 3.10 GHz)

TDP

15W, 17W for celeron 1007u

CPU Lithography

14 nm for 5th cpu, 22 nm for 4th cpu

Memory Specifications

Max Memory Size

16GB, 8GB for celereon model 1007u

Memory Types

204 Pin DDR3L SO-DIMM Socket

Memory Channels

Dual Channels, single channel for celeron model 1007u

ECC Memory

Don’t support

Storage Specification

m.2 SSD

No M.2 slot

SATA

1 x SATA3.0 for 2.5 inch HDD/SSD

mSATA

1*mSATA slot

Graphics

Processor Graphics

i3 4005u/i5 4200u Intel® HD Graphics 4400; i3 5005u Intel® HD Graphics 5500; i5 5250u Intel® HD Graphics 6000

HDMI

1*HDMI

VGA

1*VGA

Power Specification

Power Adapter

12V Power Input, supply 12V 5A power adapter within the package

Auto Power On

Support Auto Power On Function

In & Out interfaces

USB Port

4 x USB 3.0 port, 3 x USB 2.0 port

Audio

3.5mm 1 Jack, MIC in/ Line out

Video

VGA + HDMI Daul Display

Power Input

5.5mm 12V In

Lan Port

1* RTL 8168/8111/8112 Gigabit NIC

Com Port

2*RS232 Com port

Others

System

Support Windows 7/10, Linux

Case Material

Aluminium Alloy

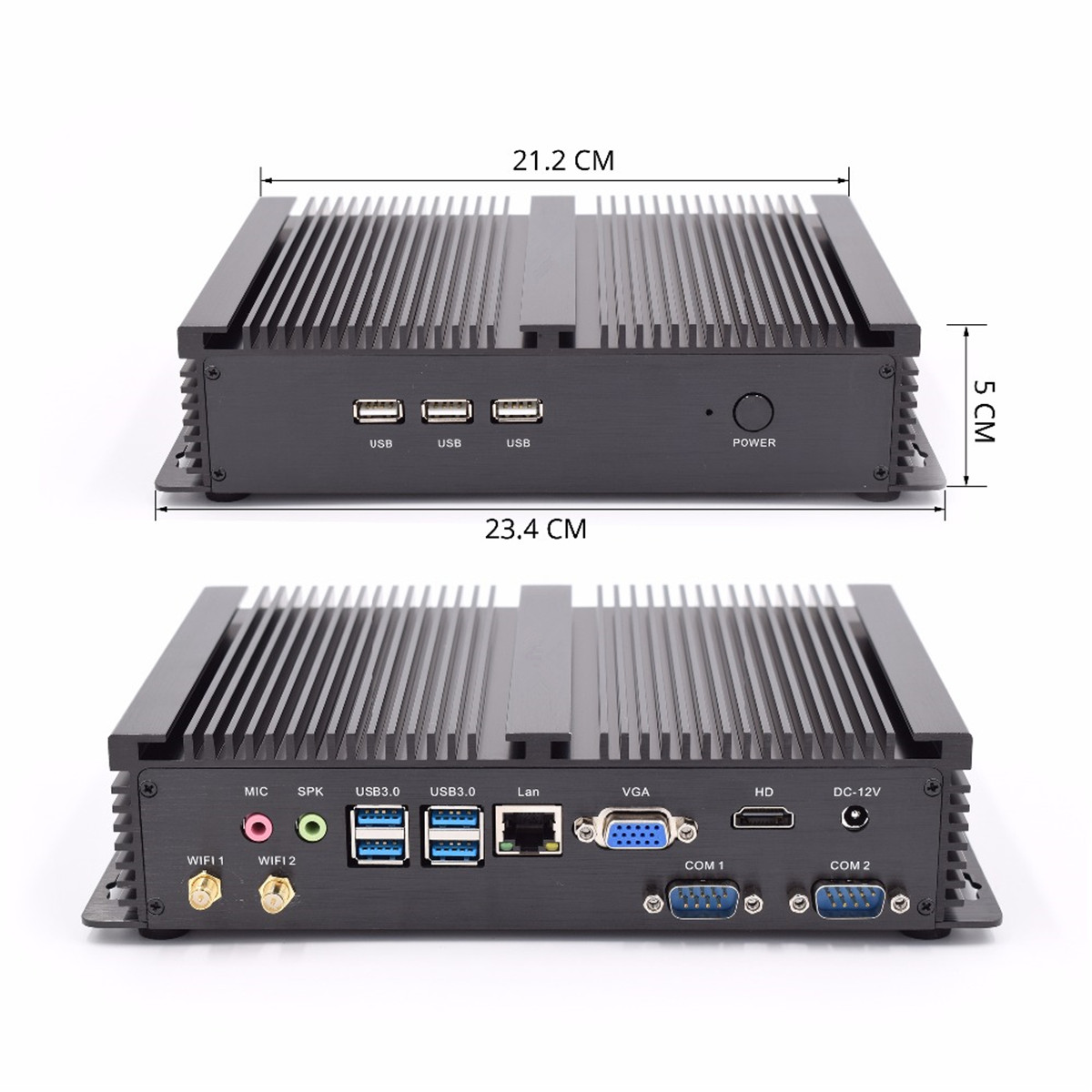

Dimension

Mini PC size 234*150*50mm

Package size 321*258*78mm

Weight

Gross weight 2.1 kg
