Dual Lan Mini Industrial PC K4 Core i5-4200U

Dual Lan Mini Industrial PC K4 Core i5-4200U Item NO.: K4-i5 4200u

Write a Review
US$ 285.12
CPU
Core i5-4200U
Memory
No RAM 2G DDR3/L 4G DDR3/L 8G DDR3/L 16G DDR3/L
Storage
No Storage 64G SSD 128G SSD 256G SSD 500G HDD 1TB HDD 256G SSD+1TB HDD
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Dual Lan Mini Industrial PC K4 Core i5-4200U
Item NO. K4-i5 4200u
Weight 2.5 kg = 5.5116 lb = 88.1849 oz
Category Industrial PC > Mini ITX PC
Brand HYSTOU
Creation Time 2020-07-17

K4 Mini PC is HYSTOU new industrial PC series launched in early 2020, similar to P04B but more smaller. The types of CPUs supported by this mini industrial pc are very comprehensive.


K4 Mini Industrial PC Highlight:

[Support multiple types of CPU]  From Celeron to Core, from Haswell to Kaby Lake R, such as Celeron 3855U/Celeron 4405U/i3-4010Y/i3-4005U/i5-4200U/i7-4500U/i3-5005U/i5-5200U/i7-5500U/i3-6100U/i5-6200U/i7-6500U/i3-7100U/i5-7200U/i7-7500U/i3-8130U/i5-8250U/i7-8550U and so on. For retail online, currently only i5-4200U ready in stock, others support qty order customized requirement.

[Memory & Storage]  Memory types: Dual 204 Pin DDR3L SO-DIMM Socket. Storage:1 x SATA3.0 for 2.5 inch HDD/SSD,1xmSATA slot.

[Excellent Waterproof and Dustproof Effect]  Brushed full aluminum alloy silver color shell can effectively waterproof and moisture-proof, increasing the service life of the machine. Fanless operation avoids the requirement of air convection, thereby effectively preventing dust from entering the inside of the mini pc.

[No noise & Portability] The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can help you save a lot of space.

[More stable operation] The cooling fan of the fanless mini computer does not use a cooling fan. Instead, a heat sink is distributed on the surface of the chassis. This design solves the problem that the cooling fan works for a long time and causes the internal temperature of the chassis to malfunction, and improves the long-term stability of the mini computer.

[Dual Screen Display]Built with VGA and HDMI port, seamlessly connecting two monitors. With integrated Intel HD graphic to enjoy 4K Web surfing, video playback, watching TV, home theater, enjoy the entertainment with your family. Support 2.4G/5.8G Band WiFi.
[Windows 10 Pro] Pre-installed with Windows 10 Pro(64bit) OS.Support Auto-on after power failure(1.Press On/Off Switch on the pc and then keep press “Delete”until goes into bios 2.Find “State After G3” under “PCH_IO configuration” page, change “s5 state” to “s0 state”, press “Enter” key. 3.Press “F10” key to save the setting and finish the setting. From now on any illegal shutdown will bring auto power on after the pc connect to main supply.)

[Low-carbon Green] TDP only 15W, very economical, saving a lot energy every year, low consumption but with a very amazing performance.





Processor

CPU

Intel Core i5-4200U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.60 GHz Turbo Frequency 2.60    GHz)

TDP

15W

CPU Lithography

14 nm for 5th cpu, 22 nm for 4th cpu

Memory Specifications

Max Memory Size

16GB

Memory Types

204 Pin DDR3L SO-DIMM Socket

Memory Channels

Dual Channels

ECC Memory

Don’t support

Storage Specification

m.2 SSD

No M.2 slot

SATA

1 x SATA3.0 for 2.5 inch HDD/SSD

mSATA

1 x mSATA slot

Graphics

Processor Graphics

Intel® HD Graphics 4400

HDMI

1 x HDMI

VGA

1 x VGA

Power Specification

Power Adapter

12V Power Input, supply 12V 5A power adapter within the package

Auto Power On

Support Auto Power On Function

In & Out interfaces

USB Port

2 x USB 3.0 port, 2 x USB 2.0 port

Audio

3.5mm 1 Jack, MIC in/ Line out

Video

VGA + HDMI Daul Display

Power Input

5.5mm 12V In

Lan Port

2 x INTEL-I210/I211 Gigabit RJ45 Lan Port

Com Port

5 x RS232 Com port, 1 x RS485 Com port

Others

System

Support Windows 7/10, Linux

Case Material

Aluminium Alloy

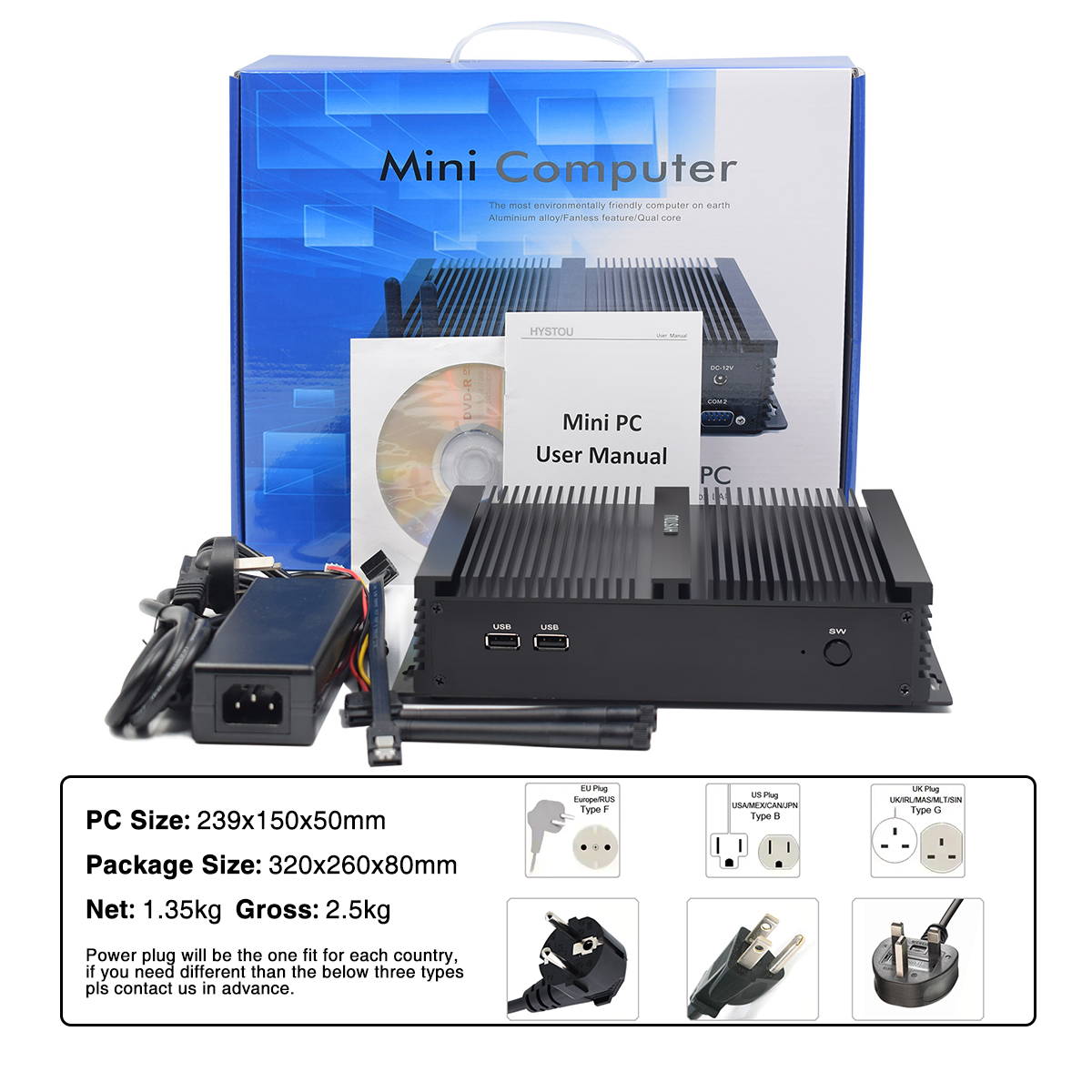

Dimension

Mini PC size 239x150x50mm

Package size 320x268x80mm

Weight

Gross weight 2.5 kg
